Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1

China Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1 supplier
Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1 supplier Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1 supplier

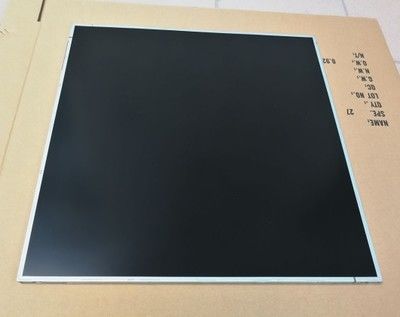

Large Image :  Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1

Product Details:

Place of Origin: China
Brand Name: LG
Certification: Rohs,CE,FCC
Model Number: LM265SQ1-SLA1

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Contact Now
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7m Colors
Model: WLED Style: Wide Screen High Resolution 1920*1920
Brightness: 300cd Connector: 92
Contrast Ratio: 1000:1 Working Time: 30k Hours



  • Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1

  • Brand

    LG Display

    Model

    LM265SQ1-SLA1

    Diagonal Size

    26.5 inch

    Type

    a-Si TFT-LCD, LCM

    Pixel Format

    1920(RGB)×1920

    Configuration

    RGB Vertical Stripe

    Active Area

    475.776(H)×475.776(V) mm

    Outline Dim.

    491.8(H)×491.8(V) ×13.1(D) mm

    Bezel Area

    479.0(H)×479.0(V) mm

    Treatment

    Antiglare (Haze 25%), Hard coating (3H)

    Luminance

    300 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (TM)

    View Direction

    Symmetry

    Response Time

    14 (Typ.)(G to G)

    Viewing Angle

    89/89/89/89 (Typ.)(CR≥10)

    Operating Mode

    IPS, Normally Black, Transmissive

    Support Color

    16.7M 76% (CIE1931)

    Light Source

    WLED , 30K hours , W/O Driver

    Weight

    2.21Kgs (Typ.)

    Frame Rate

    60Hz

    Touch Panel

    Without

    Interface Type

    92 pins LVDS (4 ch, 8-bit) , Connector

    Power Supply

    10V (Typ.)

    Environment

    Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

  •
  • LM265SQ1-SLA1 (Alias: LM265SQ1 (SL)(A1)) is a 26.5" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: High Color Gamut, Antiglare Surface, Wide Viewing Angle, Landscape type, White LED Backlight , sRGB. Based on its features, Einklcd recommend that this model be applied to Gaming, Industrial, Digital Signage etc. According to the information stored in Einklcd this model mass production on Q1, 2015, Now this model is in production. We inputted this model's specification on Aug 9 2013 for the first time, and the latest update on May 24 2017. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail of LM265SQ1-SLA1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1

Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1

Digital Signage Industrial LCD Display 1920*1920 Pixels 300CD/M2 92 Pin LM265SQ1-SLA1
