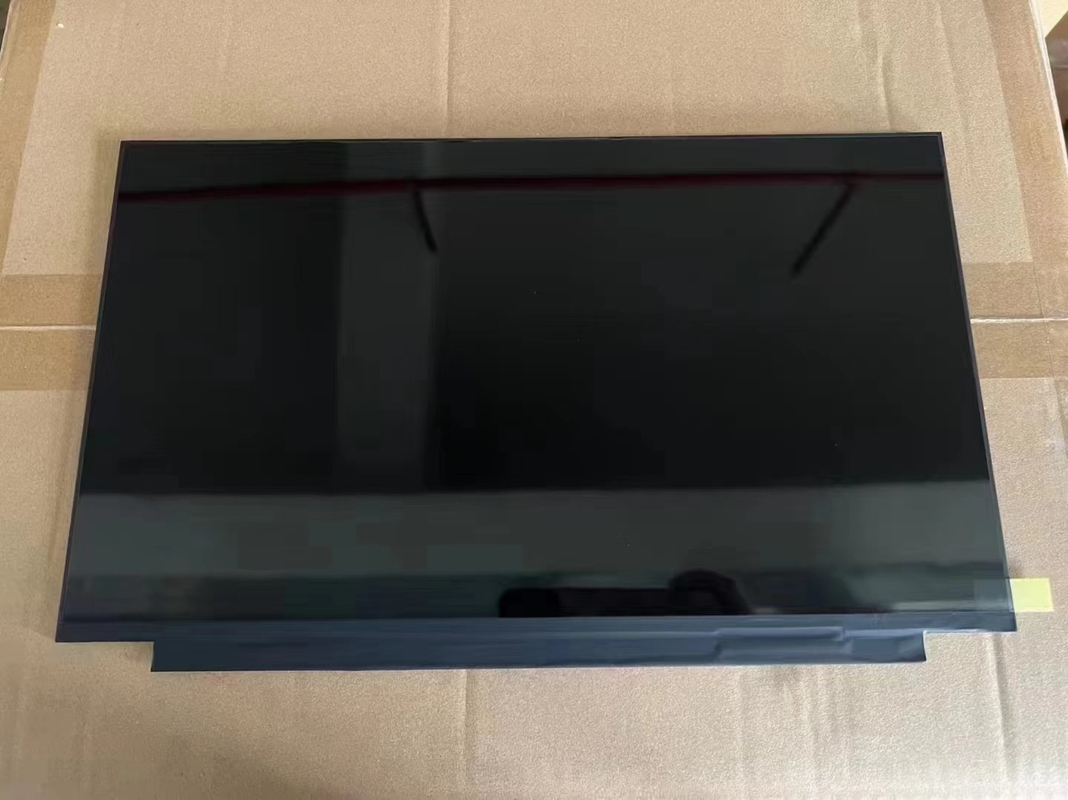

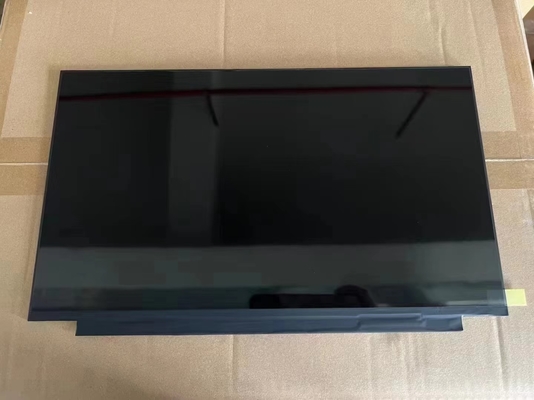

1920x1080 Pixels 141PI 220CCD Panda PC LCD Module 15.6 Inch LM156LFCL11 30PIN

Panda PC LCD Module 15.6Inch Size LM156LFCL11 30PIN 1920*1080 Pixels 141PI 220CCD

Brand: PANDA

Model P/N: LM156LFCL11
Diagonal Size: 15.6"Panel

Type Oxide TFT-LCD, LCM
Resolution: 1920(RGB)×1080, FHD 141PPI

Pixel Format: RGB Vertical Stripe
Active Area: 344.16(W)×193.59(H) mmBezel Opening-
Outline Dim.350.66(H)×216.69(V)×3.2(D) mm

Treatment: Antiglare, Hard coating (3H)
Luminance: 220 cd/m²

(Typ.)Contrast Ratio1000:1 (Typ.) (TM)
View Direction

Symmetry Response Time:25 (Typ.)(Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: FFS, Normally Black, Transmissive
Support Color: 262K 45% NTSC

Light Source: WLED , 15K hours , With LED Driver
Form Style :Slim (PCBA Flat, T≤3.2mm)

Designed For Laptop
Frame Rate:60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouch PanelWithout
Interface Typee: DP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector
Power Supply3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

The LM156LFCL11 (Product Code: NCP002D) is a 15.6 inch diagonal Oxide TFT-LCD display panel product from Nanjing CEC Panda LCD Technology Co., Ltd. (hereafter called PANDA), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.2, SDRRS, SSC. Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q4, 2020, Now this model is in production. We inputted this model's specification on Dec 3 2020 for the first time, and the latest update on Dec 25 2021. If you want to embed LM156LFCL11 LCM in your future product, einklcd strongly recommend that you should contact with PANDA or it's agent to learn lateast production and specification detail. The LM156LFCL11 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
