28.2inch 3840×2650 Resolution 30pin Connector PC LCD Module Desktop LCD Panel MV282CV0-MY0

Name: 28.2inch 3840×2650 Resolution 30pin Connector PC LCD Module Desktop LCD Panel MV282CV0-MY0
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: MV282CV0-MY0
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	MV282CV0-MY0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

XGA

Style:

Wide Screen High Resolution 3840*2650Pixels

Brightness:

250cd

Connector:

30PIN

Contrast Ratio:

1000:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

3840×2650 Resolution PC LCD Module

28.2inch Desktop LCD Panel

30pin Connector TFT-LCD Display

Product Description

Product Overview

The MV282CV0-MY0 is a 28.2-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. It features an integrated WLED backlight system (without backlight driver) and does not include a touch screen. The panel offers an operating temperature range of 0 ~ 50 °C, a storage temperature range of −20 ~ 60 °C, and a maximum vibration level of 1.5G (14.7 m/s²).

Key characteristics include a 3-side borderless design, WLED backlight, reverse interface, 10-bit color depth, eDP 1.2, and reverse type configuration. Based on these features, this model is recommended for desktop monitor applications. The model is currently in production.

Key Features

28.2-inch a-Si TFT-LCD display panel
3840 (RGB) × 2560 resolution, 15:10 aspect ratio
3-side borderless design
WLED backlight, 30K hours lifespan, without driver
10-bit color depth, eDP 1.2 interface
Reverse interface, reverse type
Hard coating (3H) surface treatment
Designed for desktop monitor applications

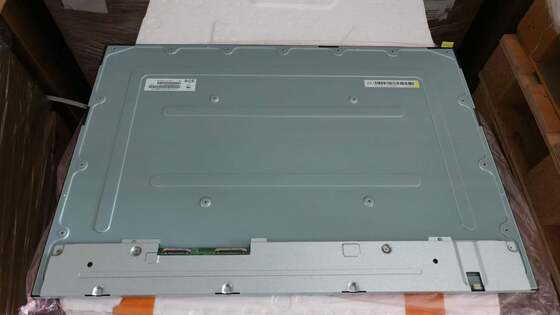

Product Image

Technical Specifications

Brand	BOE	Model	MV282CV0-MY0
Diagonal Size	28.2 inch	Type	a-Si TFT-LCD, LCM
Pixel Number	3840 (RGB) × 2560, 15:10	Pixel Format	RGB Vertical Stripe
Active Area	596.16 (H) × 397.44 (V) mm	Physical Size	—
Mass	—	Surface Coating	Hard coating (3H)
Luminance	—	Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	Symmetry	Response Time	—
Viewing Angle	89/89/89/89 (Typ.) (CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Support Color	1.07B	Designed For	Desktop Monitor
Power Usage	—	Light Source	WLED, 30K hrs, Without Driver
Frame Rate	—	Touch Panel	Without
Interface Type	Connector	Environment	Operating Temperature 0 ~ 50 °C, Storage Temperature −20 ~ 60 °C

Production & Integration Note

This model's specification was first input on June 8, 2026. If you intend to embed the MV282CV0-MY0 LCM in your future product, it is strongly recommended that you contact BOE or its agent to confirm the latest production and specification details. The production status shown here is for reference only and should not be used as the sole basis for decision-making.
