400 cd/m² Brightness 1920x1200 Pixels 30Pin PC LCD Module Laptop LCD Screen TFT-LCD Display Panel

Name: 400 cd/m² Brightness 1920x1200 Pixels 30Pin PC LCD Module Laptop LCD Screen TFT-LCD Display Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV133WUM-N62
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV133WUM-N62
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1200pixels

Style:

30PIN IPS

Brightness:

400CD/M2

Color:

16.7M

Contrast Ratio:

1200 :1

Working Life:

15K Hours

Screen Size:

13.3inch

Touch Screen:

Without

Packaging Details:

Industrial packing

Highlight:

400 cd/m² Brightness PC LCD Module

1920x1200 Pixels Laptop LCD Screen

30Pin TFT-LCD Display Panel

Product Description

Product Overview

The NV133WUM-N62 (Product Code: BOE0A1E) is a 13.3-inch diagonal a-Si TFT-LCD display panel manufactured by BOE Technology Group Co., Ltd. It features an integral WLED backlight system with an LED driver and does not include a touch screen. The module is designed for laptop applications and offers a 1920×1200 FHD resolution with 400 cd/m² typical brightness.

sRGB 100%
WLED Backlight
With LED Driver
Reverse I/F
Matte Surface
AMD FreeSync
eDP 1.4
PSR2
Low Blue Light

Based on its feature set, this model is recommended for laptop and similar applications. According to available records, this model entered mass production in Q4 2022 and is currently in production. Specifications were first recorded on December 26, 2022, with the latest update on September 21, 2026.

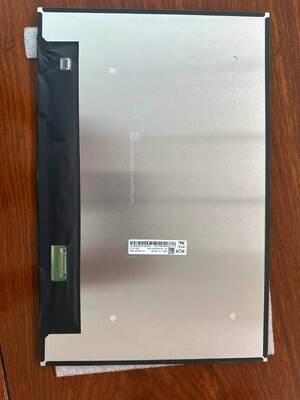

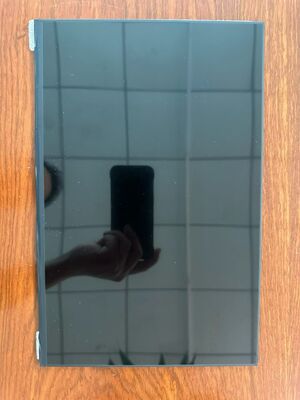

Product Image

Technical Specifications

Key specifications for the BOE NV133WUM-N62 TFT-LCD module
Brand	BOE
Model	NV133WUM-N62
Diagonal Size	13.3 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1920 (RGB) × 1200, 16:10, WUXGA
Pixel Structure	RGB Vertical Stripe
Active Area	286.042 (H) × 178.776 (V) mm
Physical Size	291.74 (H) × 189.53 (V) × 3.8 (D) mm
Mass	185 g (Max.)
Surface Coating	Antiglare (Haze 25%), Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 ms (Typ.) (Tr+Td)
Viewing Angle	89/89/89/89 (Typ.) (CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M, 100% sRGB, Low Blue Light
Form Style	Slim (PCBA Bent, T≤3.5mm)
Light Source	9S6P WLED, 15K hrs, With LED Driver
Frame Rate	60 Hz
Touch Panel	Without
Interface Type	eDP (2 Lanes), eDP 1.4, HBR1 (2.7G/lane), 30 pins, 0.5mm Connector
Power Supply	3.3V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Max Vibration Level	1.5G (14.7 m/s²)

Integration Note

If you plan to embed the NV133WUM-N62 LCM into your future product, it is strongly recommended that you contact BOE or its authorized agent to confirm the latest production and specification details. Production status information is provided for reference only and should not be used as the sole basis for purchasing or design decisions.
