BOE 11.6 Inch LCD Display Panel Laptop LCD Module 3840x2160 Pixels 40PIN IPS Industrial Screen NV116QUM-N31

BOE 11.6 Inch LCD Display Panel Laptop LCD Module 3840x2160 Pixels 40PIN IPS Industrial Screen NV116QUM-N31

BOE 11.6 Inch LCD Display Panel Laptop LCD Module 3840x2160 Pixels 40PIN IPS Industrial Screen NV116QUM-N31

Brand Name: BOE
Model Number: NV116QUM-N31
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
3840*2160pixels
Style:
30PIN IPS
Brightness:
550CD/M2
Color:
16.7M
Contrast Ratio:
1200 :1
Working Life:
25K Hours
Screen Size:
11.6inch
Touch Screen:
Without
Packaging Details:
Industrial packing
Highlight:

3840x2160 Pixels LCD Display Panel

,

40PIN Laptop LCD Module

,

IPS PC LCD Module

Product Description
Product Overview

The BOE NV116QUM-N31 is a high-quality 11.6-inch industrial LCD display panel featuring 3840*2160 WXGA resolution, 135 PPI pixel density, and a 40-pin eDP interface. This professional-grade display is engineered for laptop and industrial applications with robust performance characteristics.

Manufactured by BOE Technology Group, the NV116QUM-N31 is an 11.6-inch diagonal a-Si TFT-LCD display panel with an integrated WLED backlight system and LED driver. Designed without touch screen capability, this industrial-grade display operates in temperatures from 0°C to 50°C and withstands storage temperatures from -20°C to 60°C, with a maximum vibration tolerance of 1.5G (14.7 m/s²).

Key Features
  • WLED backlight with integrated LED driver
  • Reverse interface with matte finish
  • eDP 1.2 interface protocol
  • Antiglare hard coating (3H)
  • Slim profile design (PCBA flat, T ≤ 3.2 mm)
  • Embedded MEMC circuit for enhanced refresh rates
Technical Specifications
Model Number NV116QUM-N31
Diagonal Size 11.6 inches
Panel Type a-Si TFT-LCD, LCM
Resolution 3840*2160 (WXGA)
Active Area 256.125 * 144 mm
Outline Dimensions 278 * 168 * 3 mm (H*V*D)
Luminance 550 cd/m² (Typical)
Contrast Ratio 1200:1 (Typical)
Viewing Angle 85/85/85/85 (Left/Right/Up/Down, CR ≥ 10)
Response Time 12 ms (Typical, Tr+Td)
Color Depth 16.7M colors, 100% sRGB
Backlight 11S6P WLED, 9K hrs, with LED driver
Refresh Rate 60 Hz native, up to 240 Hz with MEMC
Interface eDP (1 Lane), eDP 1.2, HBR1 (2.7 G/lane), 40-pin connector
Operating Voltage 3.3 V (Typical)
Application Areas

This display panel is specifically recommended for laptop computers and industrial equipment applications where reliability, durability, and consistent performance are essential.

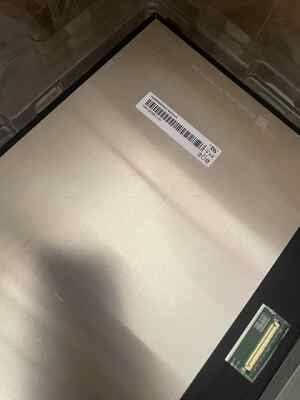

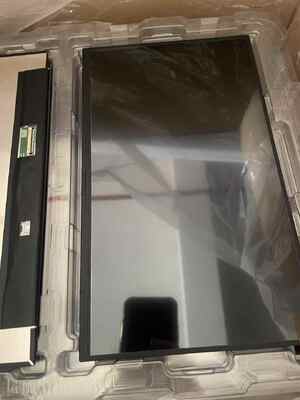

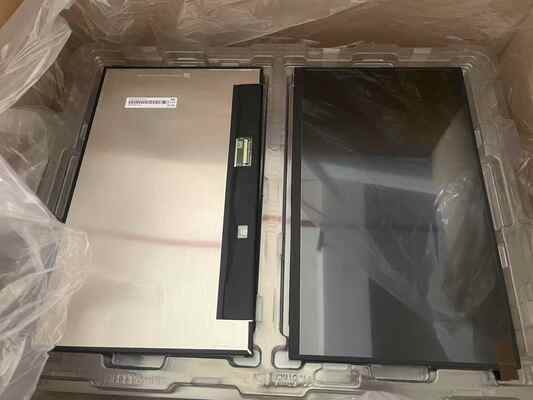

BOE NV116QUM-N31 11.6-inch LCD display panel product view
BOE NT116WHM-N21 11.6-inch LCD display panel technical specifications and product image

Production Note: This model entered mass production in Q4 2014 and remains in current production. For the latest production status and specification details for embedding in your products, we strongly recommend contacting BOE or their authorized distributors directly. Information on einklcd.com is for reference only and should not be used as the sole basis for decision-making.
