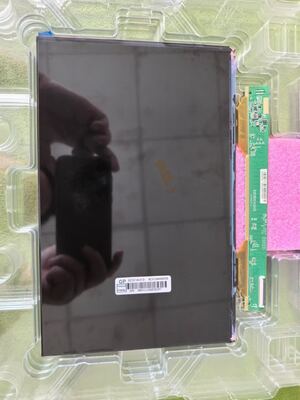

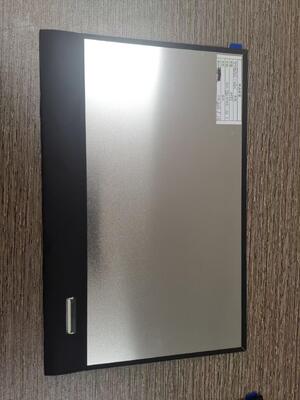

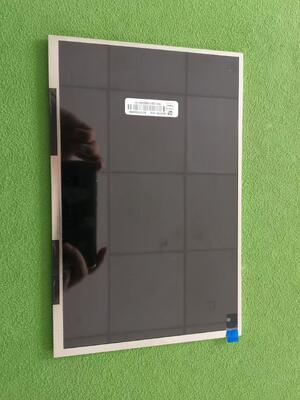

Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD

Name: Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m2 Brightness LCD Display Panel for Tablet PC PAD
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: EE101IA-01D
Price: 30.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	EE101IA-01D
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*800

Brightness:

500cd

Connector:

40PIN

Contrast Ratio:

800:1

Working Time:

20k Hours

Packaging Details:

Industrial packing

Highlight:

10.1 Inch LCD Display Panel

1280x800 Resolution TFT-LCD Module

500cd/m2 Brightness LCD Screen

Product Description

Innolux EE101IA-01D 10.1 Inch 1280x800 Resolution 500cd/m² Brightness LCD Display Panel

Product Overview

The Innolux EE101IA-01D is a 10.1-inch diagonal a-Si TFT-LCD display panel designed for tablet PC and PAD applications. This display cell features WXGA resolution, high brightness, and IPS technology for optimal viewing performance.

Key Features

10.1-inch diagonal active display area
1280*800 WXGA resolution (16:10 aspect ratio)
500 cd/m² brightness specification
IPS technology with wide viewing angles
800:1 contrast ratio
16.7 million color display capability
Built-in EK79202 driver IC
LVDS interface with 40-pin connector

Technical Specifications

Manufacturer	Innolux
Model Number	EE101IA-01D
Screen Size	10.1 inch
Screen Type	a-Si TFT-LCD, CELL (FOB)
Resolution	1280(RGB)*800, WXGA
Active Area	216.96135.6 mm (HV)
Outline Dimensions	223.95144.241.06 mm (HVD)
Weight	80.0g (Typical)
Viewing Angle	85/85/85/85 (Typical, CR≥10)
Response Time	10/15 ms (Typical, Tr/Td)
Display Type	IPS, Normally Black, Transmissive
Color Gamut	16.7M, 50% NTSC
Refresh Rate	60Hz
Interface	LVDS (1 channel, 8-bit), 40-pin connector
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Application Information

This display panel is specifically designed for Pad & Tablet applications. The product is supplied as a CELL without backlight, backlight driver, or touch screen.

Important Note: Production status information is for reference only. For integration into your products, contact Innolux or their distributor for the latest production and specification details.
