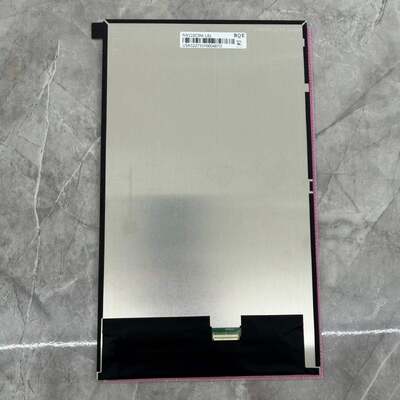

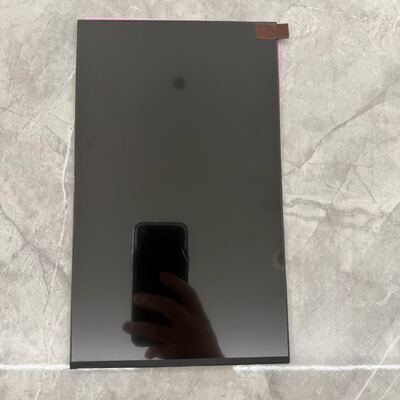

BOE 11inch LCD Screen NV110C9M-L61 with 1200x2000Pixels 400 cd/m² Brightness and 51PIN for Tablet PC

Brand Name:	BOE
Model Number:	NV10C9M-L61
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

400ccd/m2

Resolution:

1200*2000pixels

Contrast Ratio:

1400:1

Color:

16.7M

Working Life:

15k Hours

Connector:

51P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

1200x2000Pixels LCD Screen

400 cd/m² LCD Monitor

51PIN TFT-LCD Display

Product Description

BOE 11-inch Laptop Monitor LCD Screen NV110C9M-L61

High-resolution 11-inch LCD display panel with 1200×2000 pixels, 400 cd/m² brightness, and 51-pin MIPI interface, designed for tablet PC applications.

Product Overview

BOE Technology Group Co., Ltd. NV110C9M-L60 is an 11.0-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system. This portrait-oriented display operates within a temperature range of 0~50°C and stores safely at -20~60°C. Recommended for Pad & Tablet applications, this model entered mass production in Q2 2022 and remains in active production.

Technical Specifications

Brand	BOE	Model	NV110C9M-L60
Diagonal Size	11.0 inch	Type	a-Si TFT-LCD, LCM
Pixel Number	1200(RGB)×2000, 3:5	Dot Layout	RGB Vertical Stripe
Active Area	143.1(H)×238.5(V) mm	Physical Size	148.4(H)×247.1(V)×3.7(D) mm
Mass	130g (Max.)	Surface Coating	Hard coating
Luminance	400 cd/m² (Typ.)	Contrast Ratio	1400:1 (Typ.) (TM)
View Direction	Symmetry	Response Time	20 (Max.)(Tr+Td) mm
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M, 72% NTSC	Designed For	-
Power Usage	-	Light Source	9S4P WLED, 15K hrs, Without Driver
Frame Rate	60Hz	Touch Panel	Without

Interface & Environment

Interface Type	MIPI (4 data lanes), 51 pins Connector
Power Supply	1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Important Note: For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized distributors directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
