BOE 23.8inch PC LCD Module with 1920×1080 Resolution 250CD/M2 Brightness and 30pin Connector

Name: BOE 23.8inch PC LCD Module with 1920×1080 Resolution 250CD/M2 Brightness and 30pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: MV238FHM-NY1
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	MV238FHM-NY1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

XGA

Style:

Wide Screen High Resolution 1920*1080Pixels

Brightness:

250cd

Connector:

30PIN

Contrast Ratio:

1000:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

1920×1080 Resolution PC LCD Module

250CD/M2 Brightness LCD Display Panel

30pin Connector TFT-LCD Display

Product Description

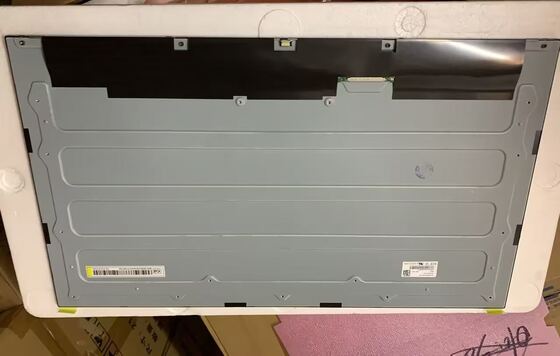

BOE 23.8-inch PC LCD Module MV238FHM-NY1

BOE Technology Group Co., Ltd. MV238FHM-NY1 is a 23.8-inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, designed for desktop monitor applications.

Product Specifications

Manufacturer	BOE
Model Name	MV238FHM-NY1
Display Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, 16:9, FHD
Pixel Structure	RGB Vertical Stripe
Display Area	527.04(W)×296.46(H) mm
Panel Weight	1.85Kgs (Typ.)
Outline Size	535(W)×310.1(H) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
View Direction	Symmetry
Response Time	14 (Typ.)(G to G) ms
Display Colors	16.7M, 100% sRGB, Low Blue Light
Frequency	120Hz
Touch Screen	Without
Power Usage	14.2/15.2W (Typ./Max.)
Light Source	18S4P WLED, 30K hrs, Without Driver
Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Key Features

sRGB color gamut coverage
3-side borderless design
120Hz refresh rate
WLED backlight system
Reverse interface support
Matte surface finish
Halogen-free construction
TCO10.0, ES8.0, ERP LevelC, CEL2, CEC certifications

Application

Recommended for Desktop Monitor, Gaming, and similar applications.

Important Note: Mass production began in Q4 2024. For integration into your products, contact BOE or its distributor for the latest production and specification details. The production status information is for reference only and should not be used as the sole basis for decision-making.
