BOE 14Inch TFT-LCD Display Panel with 1920x1200 Pixels 300cd/m2 Brightness and 30pin Connector

Name: BOE 14Inch TFT-LCD Display Panel with 1920x1200 Pixels 300cd/m2 Brightness and 30pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE140WUM-N48
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NE140WUM-N48
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

300ccd/m2

Resolution:

1920*1200pixels

Contrast Ratio:

1200:1

Color:

16.7m

Working Life:

15k Hours

Connector:

30P

Touch Panel:

Without

Screen Size:

14inch

Packaging Details:

Industrial packing

Product Description

BOE 14-Inch PC LCD Module NE140WUM-N48

Product Overview

BOE 14-inch PC LCD Module NE140WUM-N48 TFT-LCD Display Panel featuring 1920×1200 resolution, 300 cd/m² brightness, and 30-pin laptop LCD interface.

BOE Technology Group Co., Ltd. NE140WUM-N48 (Product Code: BOE0D8B) is a 14.0-inch diagonal Oxide TFT-LCD display panel with integrated WLED backlight system, including LED driver and without touch screen capability.

Key Features

WLED Backlight with LED Driver
Reverse Interface
Matte surface with hard coating (3H)
AMD FreeSync technology
eDP 1.2 interface with HBR1 (2.7G/lane)
HP Part Number: P05466-L92
Recommended for laptop applications

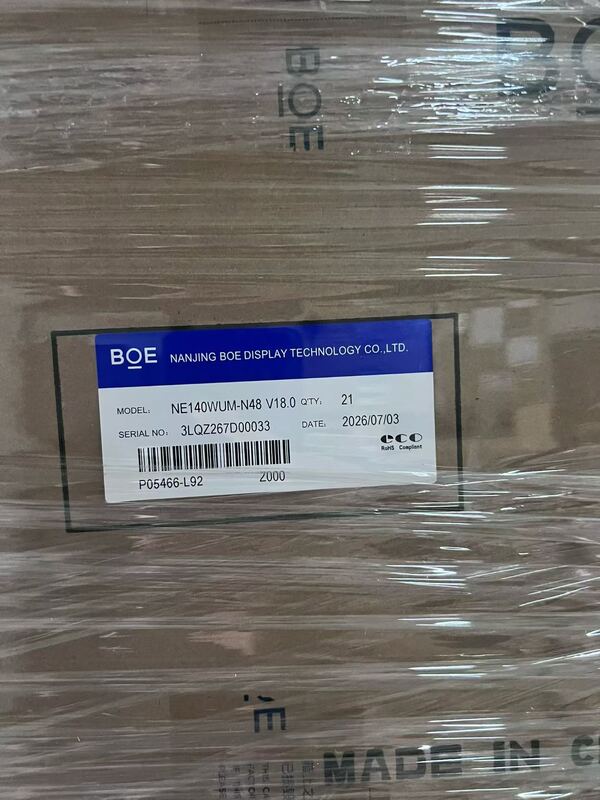

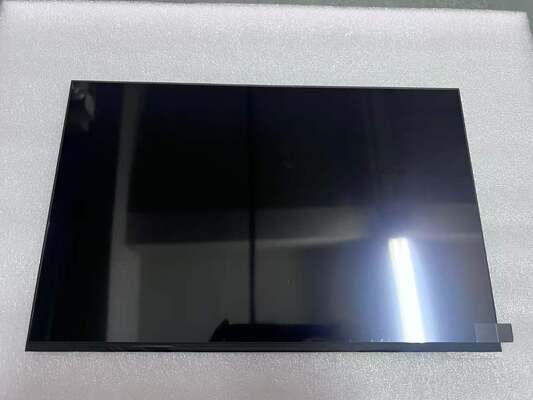

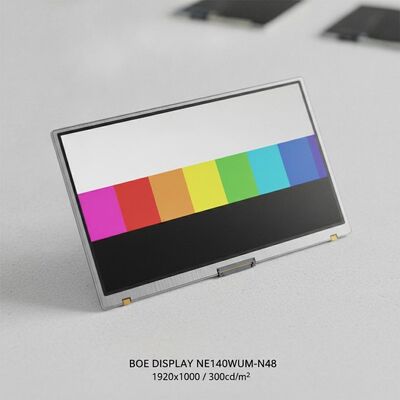

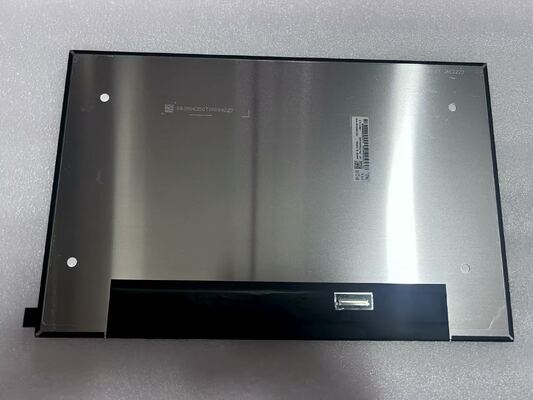

Product Image

Technical Specifications

Manufacturer	BOE
Model Number	NE140WUM-N48
Screen Size	14.0 inch
Screen Type	Oxide TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA, 16:10
Dot Layout	RGB Vertical Stripe
Active Area	301.594×188.496 mm (H×V)
Outline Area	307.29×198.85×4.8 mm (H×V×D)
Weight	300g (Max.)
Brightness	300 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Colors	16.7M, 48% NTSC
Outline Shape	Slim (PCBA Bent, T≤3.0mm)
Refresh Rate	60Hz, AMD FreeSync
Surface Feature	Antiglare, Hard coating (3H)
Contrast Ratio	1200:1 (Typ.) (TM)
Display Type	ADS, Normally Black, Transmissive
Response Time	25ms (Typ.)(Tr+Td)
Backlight	10S6P WLED, 15K hrs, With LED Driver, DC
Touchscreen	Without
Signal Type	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins Connector
Voltage Supply	3.3V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Maximal Vibration Level	1.5G (14.7 m/s²)

Production Information

Mass production started Q4 2025. This model is currently in production. Specification first input on April 22, 2026, with latest update on July 13, 2026.

Important Note: For embedding NE140WUM-N48 LCM in your products, we strongly recommend contacting BOE or their distributor for the latest production and specification details. The production status information provided is for reference only and should not be used as the basis for decision making.
