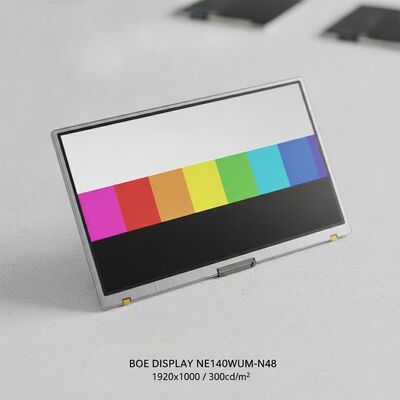

BOE 14Inch PC LCD Module TFT-LCD Display Panel with 1920x1200 Pixels 300cd/m2 Brightness 30pin Connector

Name: BOE 14Inch PC LCD Module TFT-LCD Display Panel with 1920x1200 Pixels 300cd/m2 Brightness 30pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE140WUM-N48
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NE140WUM-N48
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

300ccd/m2

Resolution:

1920*1200pixels

Contrast Ratio:

1200:1

Color:

16.7m

Working Life:

15k Hours

Connector:

30P

Touch Panel:

Without

Screen Size:

14inch

Packaging Details:

Industrial packing

Highlight:

1920x1200 Pixels PC LCD Module

300cd/m2 Brightness TFT-LCD Display Panel

30pin Connector LCD Screen

Product Description

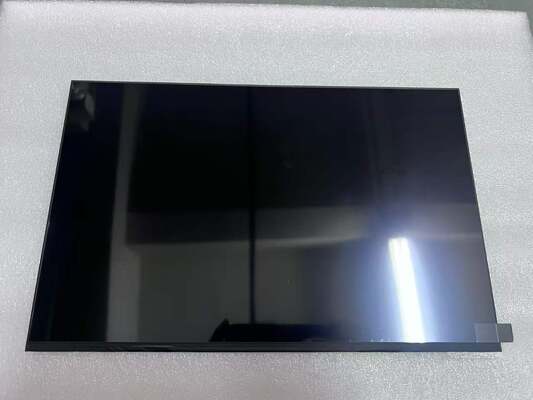

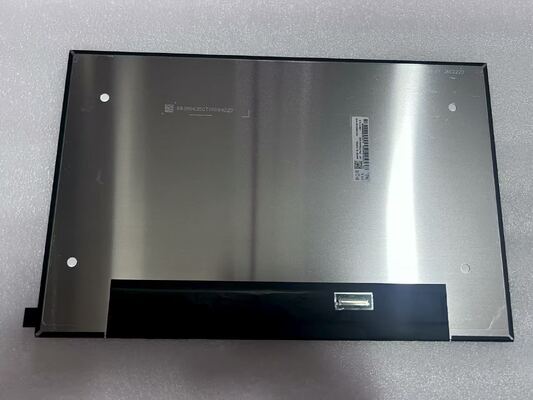

BOE 14-Inch PC LCD Module NE140WUM-N48 TFT-LCD Display Panel

Product Overview

BOE 14-Inch PC LCD Module NE140WUM-N48 TFT-LCD Display Panel with 1920×1200 pixels resolution, 300 cd/m² brightness, and 30-pin laptop LCD interface.

BOE Technology Group Co., Ltd. NE140WUM-N48 (Product Code: BOE0D8B) is a 14.0-inch diagonal Oxide TFT-LCD display panel product featuring an integral WLED backlight system with LED driver, without touch screen. This model is recommended for laptop applications and features AMD FreeSync technology with eDP1.2 interface.

Technical Specifications

Manufacturer	BOE	Model No.	NE140WUM-N48
Screen Size	14.0 inch	Screen Type	Oxide TFT-LCD, LCM
Number of Dots	1920(RGB)×1200, WUXGA, 16:10	Dot Layout	RGB Vertical Stripe
Active Area	301.594×188.496 mm (H×V)	Outline Area	307.29×198.85×4.8 mm (H×V×D)
Weight	300g (Max.)	Surface Feature	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)	Contrast Ratio	1200 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Type	ADS, Normally Black, Transmissive
Outline Shape	Symmetry	Response (ms)	25 (Typ.)(Tr+Td)
Display Colors	16.7M, 48% NTSC	Used for	Laptop
Refresh Rate	60Hz, AMD FreeSync	Backlight	10S6P WLED, 15K hrs, With LED Driver, DC
Signal Type	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins Connector	Touchscreen	Without
Voltage Supply	3.3V (Typ.)	Max. Ratings	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C

Additional Information

This model features slim design (PCBA Bent, T≤3.0mm) and general features include WLED Backlight, With LED Driver, Reverse I/F, Matte, FreeSync, eDP1.2, FreeSync, PN P05466-L92.

Note: The production status information provided is for reference only and should not be used as the basis for decision making. We strongly recommend contacting BOE or its distributor for the latest production and specification details.
