BOE 16.0 Inch LCD Display Panel NV160WU2-M20 with 1920x1200 Pixels FHD Resolution 30PIN IPS Laptop Screen

Name: BOE 16.0 Inch LCD Display Panel NV160WU2-M20 with 1920x1200 Pixels FHD Resolution 30PIN IPS Laptop Screen
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV160WU2-M20
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV160WU2-M20
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1200pixels

Style:

30PIN IPS

Brightness:

220CD/M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

15K Hours

Screen Size:

16inch

Touch Screen:

Without

Packaging Details:

Industrial packing

Product Description

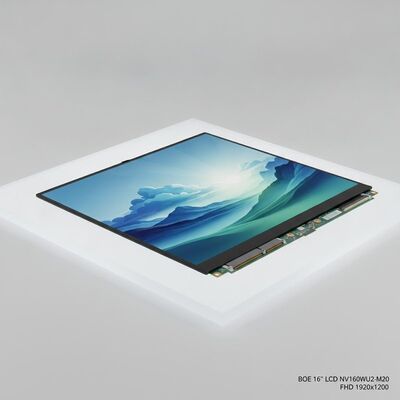

BOE 16-Inch LCD Display Panel NV160WU2-M20

The BOE NV160WU2-M20 is a 16.0-inch diagonal a-Si TFT-LCD display panel featuring 1920*1200 WUXGA resolution with a 16:10 aspect ratio. This laptop screen panel includes an integrated WLED backlight system with LED driver and operates without a touch screen.

Designed for reliable performance in laptop applications, this display panel offers excellent viewing characteristics and robust environmental specifications suitable for various computing applications.

Technical Specifications

Brand	BOE
Model	NV160WU2-M20
Diagonal Size	16.0 inch
Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1200, WUXGA, 16:10
Dot Layout	RGB Vertical Stripe
Active Area	344.68(H)*215.42(V) mm
Surface Coating	Hard coating (3H)
Contrast Ratio	1200:1 (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.2M
Touch Panel	Without
Form Style	Slim (PCBA Bent, T≤3.0mm)
Light Source	WLED, 15K hrs, With LED Driver
Frame Rate	60Hz

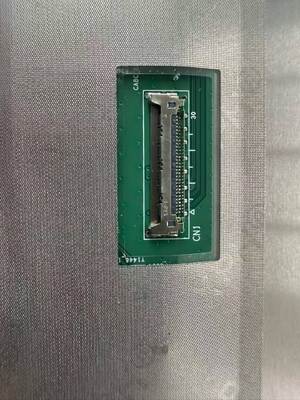

Interface Type	eDP (2 Lanes), HBR1 (2.7G/lane) Connector
Power Supply	3.3V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Vibration Level	1.5G (14.7 m/s²)

Important Note: The production status information is provided for reference only and should not be used as the basis for decision making. We strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications before integrating this display panel into your products.
