Innolux 27Inch LCD Panel TFT-LCD Display with 2560×1440Pixels Resolution 350CD/M2 Brightness and 92pin Connector

Name: Innolux 27Inch LCD Panel TFT-LCD Display with 2560×1440Pixels Resolution 350CD/M2 Brightness and 92pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M270KCJ-L5E
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	M270KCJ-L5E
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

350CD/M2

Connector:

92PIN

Color:

16.7M

Contrast Ratio:

1000:1

Working Life:

30K Hours

Resolution:

3440*1440pixels

Voltage Supply:

10V

Signal Type:

LCM

Screen Size:

27inch

Packaging Details:

Industrial packing

Product Description

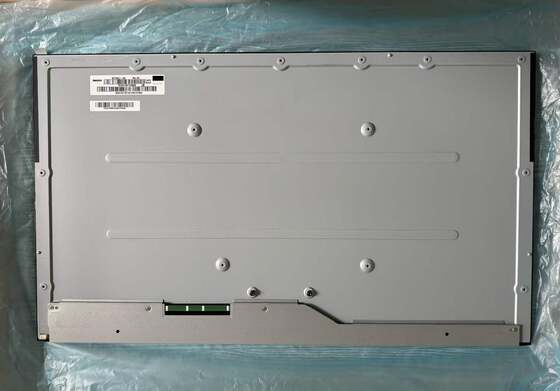

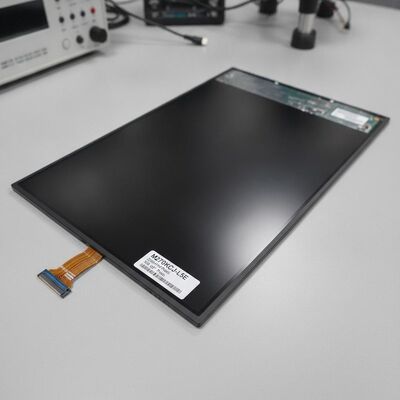

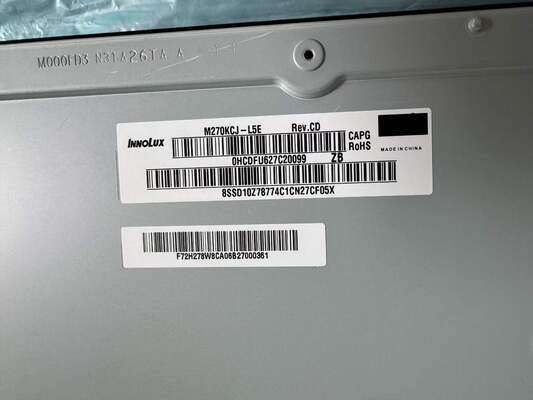

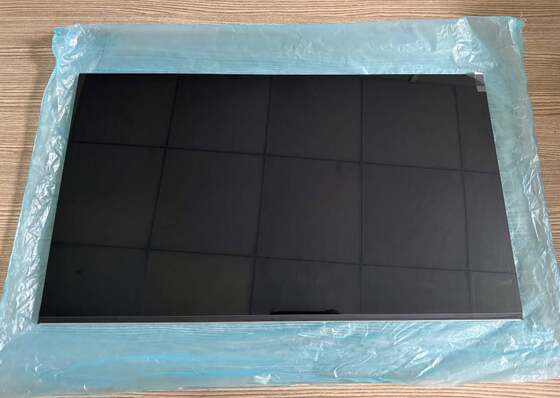

Innolux 27-Inch LCD Panel TFT-LCD Display M270KCJ-L5E

27-inch diagonal a-Si TFT-LCD display panel with 2560×1440 pixels resolution, 350 cd/m² brightness, and 92-pin connector

Product Overview

The Innolux M270KCJ-L5E is a 27.0-inch diagonal a-Si TFT-LCD display panel featuring an integral WLED backlight system. This panel operates within a temperature range of 0~50°C and stores safely between -20~60°C.

Key features include sRGB color gamut, 3-side borderless design, WLED backlight technology, reverse interface, matte surface treatment, low blue light emission, and TCO 8.0 certification. Recommended for desktop monitor applications.

Technical Specifications

Manufacturer	Innolux	Model Name	M270KCJ-L5E
Display Size	27.0"	Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, 16:9, Quad-HD	Pixel Format	RGB Vertical Stripe
Display Area	596.736(W)×335.664(H) mm	Panel Weight	2.58/2.87/3.01 kg (Min./Typ./Max.)
Outline Size	608.78(W)×355.13(H)×13.36(D) mm	Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	350 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	AAS, Normally Black, Transmissive
View Direction	Symmetry	Response Time	8/7 (Typ.)(Tr/Td) ms
Display Colors	16.7M, 100% sRGB, Low Blue Light	Application	Desktop Monitor
Frequency	75Hz	Touch Screen	Without
Power Consumption	26.32W (Max.)	Light Source	WLED, 30K hrs, Without Driver
Interface	LVDS (4 ch, 8-bit), 92 pins Connector
Input Voltage	10V (Typ.)
Environment	Operating Temp: 0~50°C, Storage Temp: -20~60°C

Key Features

27-inch Quad-HD resolution (2560×1440)
100% sRGB color gamut with 16.7 million colors
350 cd/m² typical brightness
3-side borderless design
Low blue light technology
75Hz refresh rate
WLED backlight with 30,000-hour lifespan
LVDS interface with 92-pin connector
TCO 8.0 certified

Production status information is for reference only. Contact Innolux or its distributor for latest production and specification details before integration.
