AUO 27inch Desktop LCD Display Panel with 1920x1080Pixels Resolution and 300 cd/m² Brightness

Name: AUO 27inch Desktop LCD Display Panel with 1920x1080Pixels Resolution and 300 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M270HVN02.0
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	M270HVN02.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	Western Union,MoneyGram,T/T
Supply Ability:	20000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,FCC,ROSH,UL,REACH

Material:

Glass

Size:

27inch

Constraction:

1000:1

Pixels:

1920*1080

Contactor:

30pin

Working Life:

40k Hours

Display Colors:

16.7M

Weight:

2.39kg

Packaging Details:

industrial package

Product Description

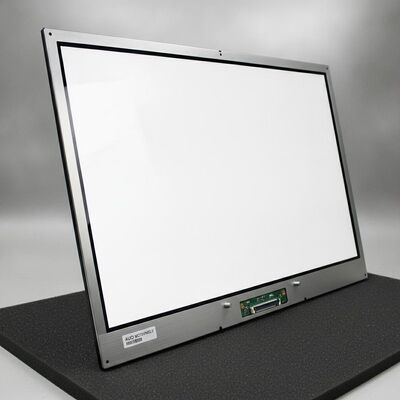

AUO 27-Inch Desktop LCD Display Panel M270HVN02.0

The M270HVN02.0 is a 27.0-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp., featuring an integrated WLED backlight system. This panel operates within a temperature range of 0~50°C and can withstand storage temperatures of -20~60°C with a maximum vibration level of 1.5G (14.7 m/s²).

Key Features

WLED Backlight with 40,000 hours lifespan
1920×1080 Full HD resolution
300 cd/m² brightness with 3000:1 contrast ratio
75Hz refresh rate
AMVA technology with normally black, transmissive display
16.7 million colors with 72% NTSC color gamut
LVDS signal interface with 30-pin connector
Antiglare surface with hard coating (3H)

Technical Specifications

Manufacturer	AU Optronics Corp. (AUO)
Model Number	M270HVN02.0
Screen Size	27.0 inch
Resolution	1920(RGB)×1080 (FHD, 16:9)
Active Area	597.6×336.15 mm (H×V)
Outline Dimensions	613.6×356.85×10.5 mm (H×V×D)
Weight	2.18 kg (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Response Time	7/5 ms (Typical, Tr/Td)
Power Consumption	20.98W (Typical)
Operating Voltage	5.0V (Typical)

Environmental Specifications

Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Max Vibration Level	1.5G (14.7 m/s²)

Production Note: This model entered mass production in Q4 2012 and is currently in production. For the latest production status and specification details, we strongly recommend contacting AUO or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
