BOE 24Inch Desktop LCD Module with 1920×1200 Resolution 350 cd/m² Brightness and 30pin Connector

Name: BOE 24Inch Desktop LCD Module with 1920×1200 Resolution 350 cd/m² Brightness and 30pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: MV240WUM-NX3
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	MV240WUM-NX3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

350CD/M2

Connector:

30PIN

Color:

16.7M

Contrast Ratio:

1500:1

Working Life:

30K Hours

Resolution:

1920*1200pixels

Voltage Supply:

Signal Type:

LVDS

Packaging Details:

Industrial packing

Product Description

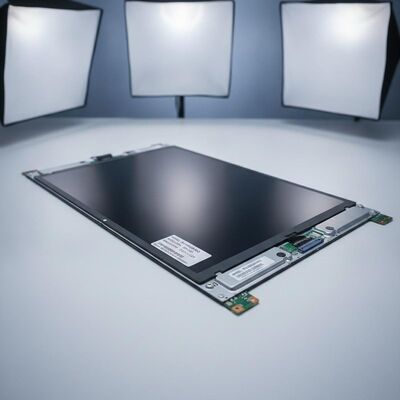

BOE 24-Inch Desktop LCD Module MV240WUM-NX3

Product Overview

The MV240WUM-NX3 is a 24.0-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring 1920×1200 WUXGA resolution, 350 cd/m² brightness, and a 30-pin connector interface.

Key Features

24.0-inch display with 1920×1200 WUXGA resolution
350 cd/m² brightness and 1500:1 contrast ratio
100% sRGB color gamut supporting 16.7 million colors
3-side borderless design with matte surface
WLED backlight with 30,000-hour lifespan
LVDS interface with 30-pin connector
TCO 9.0 and ES 8.0 compliant

Technical Specifications

Manufacturer	BOE	Model Name	MV240WUM-NX3
Display Size	24.0"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, 16:10, WUXGA	Pixel Format	RGB Vertical Stripe
Display Area	518.4(W)×324(H) mm	Panel Weight	2.04Kgs (Typ.)
Brightness	350 cd/m² (Typ.)	Contrast Ratio	1500:1 (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Response Time	14ms (Typ.)(G to G)
Interface	LVDS (2 ch, 8-bit), 30 pins Connector	Input Voltage	5.0V (Typ.)
Operating Temperature	0 ~ 50 °C	Storage Temperature	-20 ~ 60 °C

Application & Compatibility

This display module is recommended for desktop monitor applications and features a standard LVDS interface for easy integration.

Important Note: The production status information is for reference only. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production and specification details.
