Innolux 27Inch LCD Panel TFT-LCD Display with 1920×1080 Resolution 300CD/M2 Brightness and 30pin Connector

Name: Innolux 27Inch LCD Panel TFT-LCD Display with 1920×1080 Resolution 300CD/M2 Brightness and 30pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M270HGE-L20
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	M270HGE-L20
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CD/M2

Connector:

30PIN

Color:

16.7M

Contrast Ratio:

1200:1

Working Life:

30K Hours

Resolution:

1920*1080pixels

Voltage Supply:

5.0V

Signal Type:

LVDS

Screen Size:

27inch

Packaging Details:

Industrial packing

Product Description

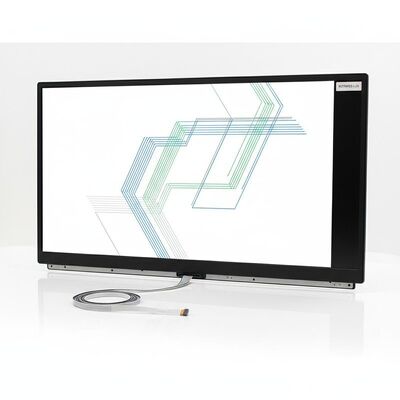

Innolux 27-Inch Desktop Monitor LCD Panel M270HGE-L20

Innolux 27-Inch Desktop Monitor tablet PC LCD panel M270HGE-L20 features 1920×1080 pixels resolution, 300 cd/m² brightness, and 30-pin interface.

Chimei Innolux Corporation M270HGE-L20 is a 27.0-inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system. This panel operates within a temperature range of 0~50°C and stores safely at -20~60°C.

Key features include WLED backlight, upside interface, matte finish, and TC0'5.0 compliance. This model is recommended for desktop monitor applications.

Technical Specifications

Manufacturer	Chimei Innolux
Model Name	M270HGE-L20
Display Size	27.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD, 16:9
Pixel Format	RGB Vertical Stripe
Display Area	597.888(W)×336.312(H) mm
Panel Weight	2.85/2.97 kg (Typ./Max.)
Outline Size	630(W)×368.2(H)×14.6(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	0.8/2.6 (Typ.)(Tr/Td) ms
Display Colors	16.7M, 72% NTSC
Application	Tablet PC, Desktop
Frequency	75Hz
Touch Screen	Without
Power Consumption	27.34W (Max.)
Light Source	4 strings WLED, 30K hrs, Without Driver
Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp: 0~50°C, Storage Temp: -20~60°C

Important Note: This model entered mass production in Q3 2011 and is now discontinued. Specification information was first recorded on June 27, 2012, with the latest update on September 12, 2024. For integration into future products, contact Chimei Innolux or their distributor for the latest production and specification details. Production status information is for reference only and should not be used as the basis for decision-making.
