BOE 14.2 Inch PC LCD Module TE142QLM-LB0 TFT-LCD Display Panel with 1600x2328 Pixels 265cd/m2 Brightness and 165Hz Frame Rate

Brand Name:	BOE
Model Number:	NE156QHM-NY4
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

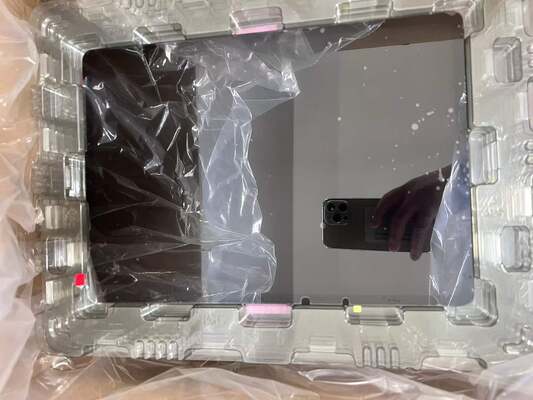

Original Industrial Packing

Material:

Glass

Brightness:

650ccd/m2

Resolution:

1600*2328pixels

Contrast Ratio:

1000:1

Color:

16.7m

Working Life:

15k Hours

Connector:

51P

Touch Panel:

Pcap

Packaging Details:

Industrial packing

Product Description

BOE 14.2-Inch PC LCD Module TE142QLM-LB0

High-performance 14.2-inch TFT-LCD display panel featuring 1600×2328 resolution, 265 cd/m² brightness, and 165Hz refresh rate with integrated touch panel for laptop applications.

Product Overview

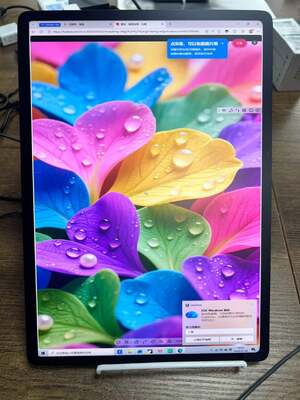

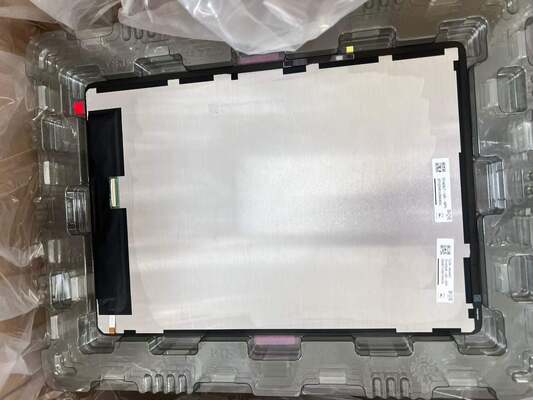

The TE142QLM-LB0 is a 14.2-inch diagonal Oxide TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system, PCAP touchscreen, and comprehensive display capabilities. This model entered mass production in Q3 2024 and is recommended for tablet and similar applications.

Key Features

14.2-inch Oxide TFT-LCD display
1600×2328 resolution (2:3 aspect ratio)
265 cd/m² typical brightness
165Hz refresh rate
Projected capacitive touch (PCAP)
97% DCI-P3 color gamut coverage
Anti-glare surface treatment (42% haze)
WLED backlight with 8 strings

Technical Specifications

Manufacturer	BOE	Model Number	TE142QLM-LB0
Screen Size	14.2 inch	Screen Type	Oxide TFT-LCD, LCM
Resolution	1600(RGB)×2328	Dot Layout	RGB Vertical Stripe
Active Area	204.336×297.309 mm (H×V)	Outline Area	221.74×314.71 mm (H×V)
Weight	362g (Typical)	Surface Feature	Antiglare (Haze 42%)
Brightness	265 cd/m² (Typical)	Contrast Ratio	1000:1 (Typical)
Viewing Angle	80/80/80/80 (CR≥10)	Display Type	HADS, Normally Black, Transmissive
Display Colors	16.7M, 97% DCI-P3	Response Time	30ms (Typical, Tr+Td)
Refresh Rate	60Hz	Backlight	8 strings WLED, No Driver
Touchscreen	PCAP, I²C	Application	Tablet & Similar Devices

Interface & Electrical Specifications

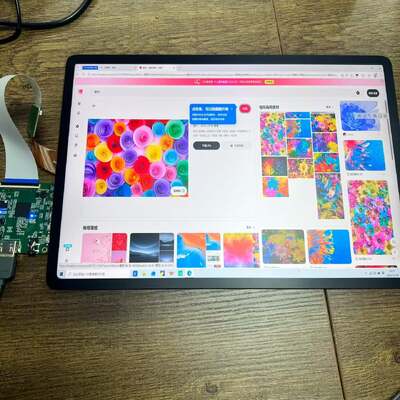

Signal Type	MIPI (2 ch, 4 data lanes), 51 pins Connector
Voltage Supply	1.8/5.5/-5.5V (Typical)(VDD/VSP/VSN)
Operating Temperature	-20°C to 60°C
Storage Temperature	-30°C to 70°C

Production Information

This model entered mass production in Q3 2024. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications. The information provided is for reference only and should not be used as the sole basis for decision-making.
