BOE 23.8Inch Desktop LCD Module MV238FHM-NG1 with 1920×1080 Resolution 350 cd/m² Brightness and 30K Hours Working Life

Name: BOE 23.8Inch Desktop LCD Module MV238FHM-NG1 with 1920×1080 Resolution 350 cd/m² Brightness and 30K Hours Working Life
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: MV238FHM-NG1
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	MV238FHM-NG1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

350CD/M2

Connector:

920PIN

Color:

16.7M

Contrast Ratio:

1000:1

Working Life:

30K Hours

Resolution:

1920*1080pixels

Voltage Supply:

5.0V

Signal Type:

LVDS

Packaging Details:

Industrial packing

Highlight:

1920×1080 Resolution LCD Module

350 cd/m² Brightness TFT-LCD Display Panel

30K Hours Working Life Desktop LCD Monitor

Product Description

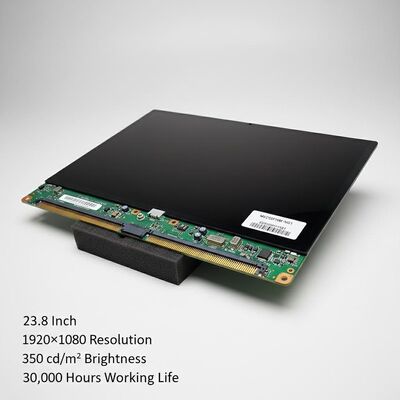

BOE 23.8-Inch Desktop LCD Module MV238FHM-NG1

23.8-inch FHD LCD display module with 1920*1080 resolution, 350 cd/m² brightness, and 30,000-hour working life. Features 144Hz refresh rate, 3-side borderless design, and 92-pin LVDS interface.

Product Overview

MV238FHM-NG1 is a 23.8-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This LCM features an integrated WLED backlight system without backlight driver or touch screen. Designed for desktop monitors and gaming applications with sRGB color gamut and matte surface treatment.

Technical Specifications

Brand	BOE
Model P/N	MV238FHM-NG1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080, FHD (92 PPI)
Active Area	527.04(W) * 296.46(H) mm
Outline Dimensions	535(W) * 313(H) * 15.35(D) mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Brightness	350 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Response Time	5ms (Typical, G to G)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Color Support	16.7M colors, 99% sRGB
Refresh Rate	144Hz
Backlight	WLED, 30,000 hours (without driver)
Interface	LVDS (4 ch, 8-bit), 92-pin connector
Power Supply	5.0V (Typical)
Weight	2.23/2.43 kg (Typical/Maximum)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	1.5G (14.7 m/s²) maximum

Key Features

• 3-side borderless design for seamless integration
• 144Hz refresh rate for smooth gaming performance
• 99% sRGB color gamut for accurate color reproduction
• Matte anti-glare surface with 3H hardness coating
• LVDS interface with 92-pin connector
• Long-life WLED backlight (30,000 hours)

Application Areas

Desktop monitors, gaming displays, and professional display applications.

Important Note: This model entered mass production in Q1 2021 and is now discontinued. For current production status and latest specifications, please contact BOE or their authorized agents directly. The information provided is for reference only and should not be used as the sole basis for decision-making.
