BOE 15.6 Inch PC LCD Module TFT-LCD Display Panel with 2560x1440 Pixels 300cd/m2 Brightness and 165Hz Frame Rate for Laptop and Gaming

Name: BOE 15.6 Inch PC LCD Module TFT-LCD Display Panel with 2560x1440 Pixels 300cd/m2 Brightness and 165Hz Frame Rate for Laptop and Gaming
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE156QHM-NY4
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NE156QHM-NY4
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

300ccd/m2

Resolution:

2560*1440pixels

Contrast Ratio:

1200:1

Color:

1.07B

Working Life:

15k Hours

Connector:

40P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

2560x1440 Pixels PC LCD Module

300cd/m2 Brightness TFT-LCD Display Panel

165Hz Frame Rate LCD Monitor Panel

Product Description

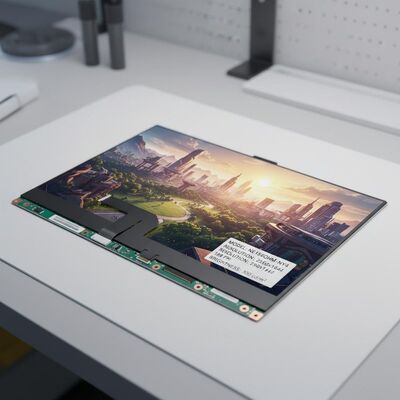

BOE 15.6-Inch PC LCD Module NE156QHM-NY4

High-resolution 2560*1440 Quad-HD display panel with 188 PPI and 300 cd/m² brightness, designed for laptops and gaming applications.

Product Overview

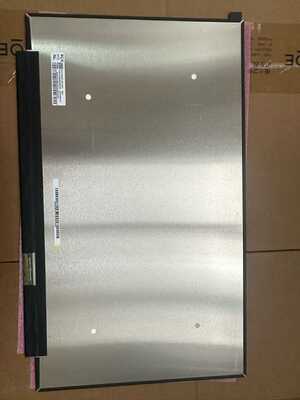

The BOE NE156QHM-NY4 is a 15.6-inch diagonal Oxide TFT-LCD display panel featuring an integrated WLED backlight system with LED driver. This panel does not include a touch screen and is engineered for demanding applications requiring high performance and reliability.

Key Features

165Hz refresh rate for smooth gaming and video
10-bit color depth supporting 1.07 billion colors
100% sRGB color gamut for accurate color reproduction
eDP 1.4 interface with 4 lanes

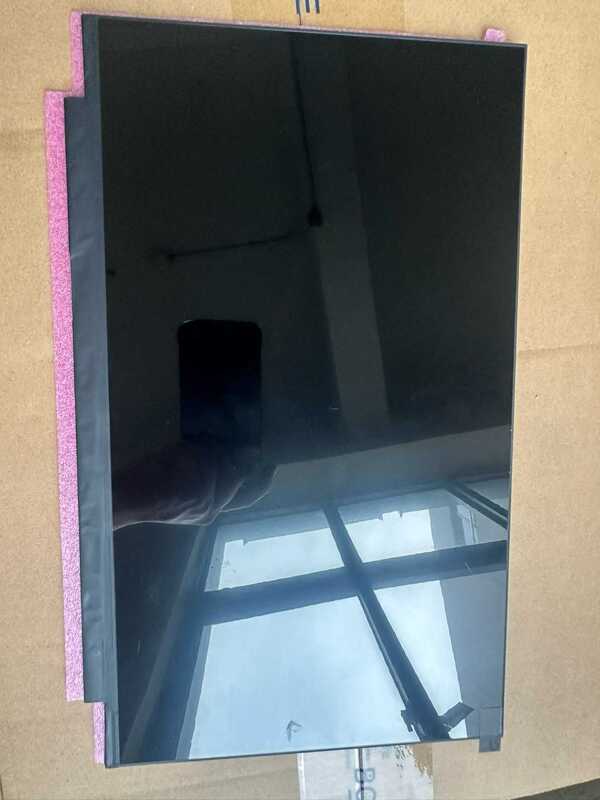

Matte finish with anti-glare hard coating (3H)
LED DC dimming, PSR, OD, DDS, BIST, and FRC technologies

Technical Specifications

Brand	BOE

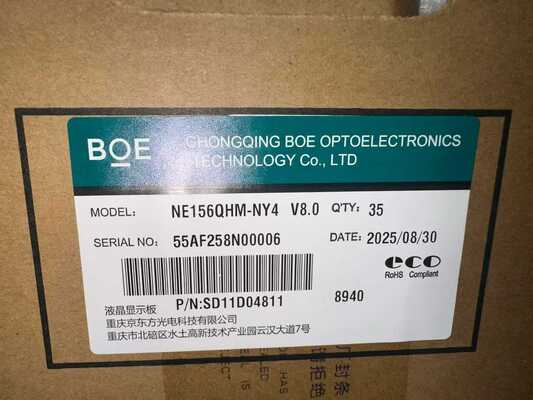

Model P/N	NE156QHM-NY4
Diagonal Size	15.6"
Panel Type	Oxide TFT-LCD, LCM
Resolution	2560(RGB)*1440 (Quad-HD), 188 PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.22(W)*193.62(H) mm
Outline Dimensions	350.66(H)214.72(V)2.6(D) mm
Surface Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	9ms (Typical, Tr+Td)
Operating Mode	ADS, Normally Black, Transmissive
Color Support	1.07 billion colors, 100% sRGB
Light Source	WLED [11S5P], 15K hours, With LED Driver
Frame Rate	165Hz
Touch Panel	Without

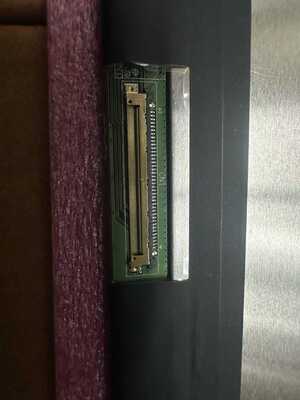

Interface Type	eDP (4 Lanes), eDP1.4, HBR3 (8.1G/lane), 40-pin Connector
Power Supply	3.3V (Typical)
Form Style	Slim (PCBA Flat, T≤3.2mm)

Environmental Specifications

Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Max Vibration Level	1.5G (14.7 m/s²)

Application Recommendations

This display panel is specifically designed for laptop computers and gaming applications where high resolution, fast refresh rates, and accurate color reproduction are essential.

Mass production began in Q2 2021. For the latest production status and detailed specifications, we strongly recommend contacting BOE or its authorized distributors directly. The information provided is for reference only and should not be used as the sole basis for decision-making.
