BOE 16.0 Inch LCD Panel NE160WUM-NX1 with 300CD/M2 Brightness and 40pin Connector for PC LCD Display

Brand Name:	BOE
Model Number:	TV101WXM-LL0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CCD/M2

Connector:

30P

Color:

16.7M

Contrast Ratio:

1200:1

Working Life:

15K Hours

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

300CD/M2 Brightness LCD Panel

40pin Connector TFT-LCD Display

16.0 Inch Diagonal PC LCD Module

Product Description

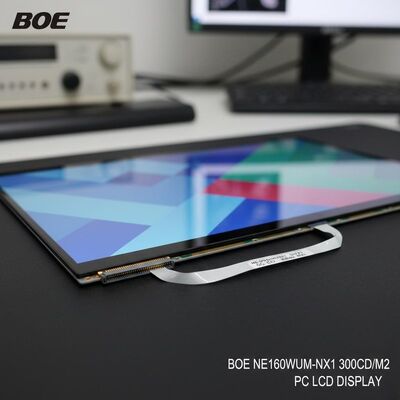

BOE 15.6-Inch LCD Panel NE160WUM-NX1

High-performance 16.0-inch diagonal Oxide TFT-LCD display panel with 300 cd/m² brightness and 40-pin eDP connector, designed for PC LCD displays and gaming applications.

Key Features

120Hz refresh rate for smooth motion
1920*1200 WUXGA resolution (141 PPI)
100% sRGB color gamut with 16.7 million colors
AMD FreeSync technology support
1200:1 contrast ratio
Antiglare surface with hard coating (3H)
eDP 1.4 interface with 40-pin connector
WLED backlight with 15,000 hours lifespan

Technical Specifications

Brand	BOE
Model Number	NE160WUM-NX1 (BOE0B2B)
Panel Type	Oxide TFT-LCD, LCM
Diagonal Size	16.0 inches
Resolution	1920(RGB)*1200 (WUXGA)
Active Area	344.68 * 215.42 mm
Brightness	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	25ms (Typical, Tr+Td)
Refresh Rate	120Hz
Signal Interface	eDP (4 Lanes), eDP1.4, 40-pin connector
Input Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	1.5G (14.7 m/s²)

Applications

Ideal for laptops, gaming displays, and other PC LCD display applications requiring high refresh rates and excellent color reproduction.

Production Note: This model entered mass production in Q2 2022 and is currently in production. For the latest production status and specification details, we recommend contacting BOE or their authorized agents directly.
