BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display

Name: BOE 10.1 Inch LCD Panel with 250CD/M2 Brightness and MIPI Connector for PC LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TV101WXM-LL0
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	TV101WXM-LL0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

250CCD/M2

Connector:

30P

Color:

16.7M

Contrast Ratio:

1000:1

Working Life:

30K Hours

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

250CD/M2 Brightness LCD Panel

10.1 Inch Size TFT-LCD Module

MIPI Connector PC LCD Display

Product Description

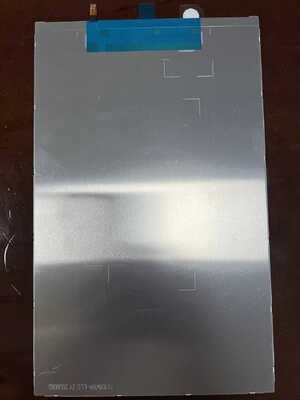

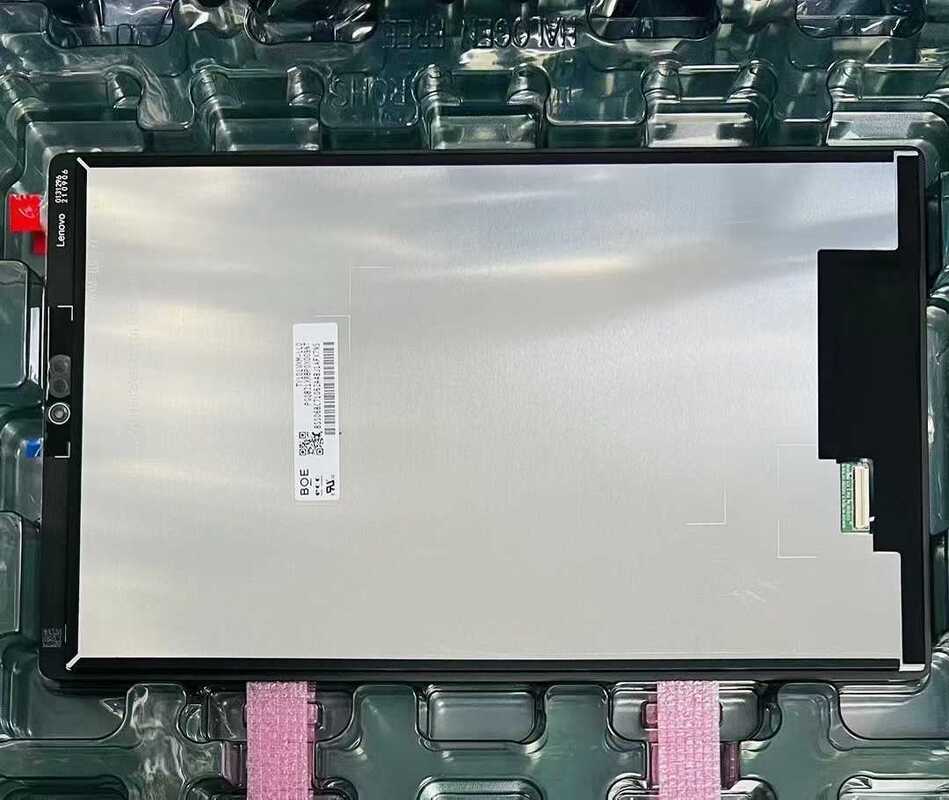

BOE 10.1-Inch Laptop PC LCD Panel TV101WXM-LL0

Product Overview

10.1-inch diagonal a-Si TFT-LCD display panel with 250 cd/m² brightness, 150 PPI resolution, and MIPI connector. Features In-Cell Touch technology and WLED backlight system.

Technical Specifications

Brand	BOE
Model Number	TV101WXM-LL0
Diagonal Size	10.1 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)*1280, WXGA (150 PPI)
Active Area	135.36 * 216.576 mm
Luminance	250 cd/m²
Contrast Ratio	1000:1 (Typical)
Viewing Angle	80/80/80/80 (CR≥10)
Response Time	25 ms (Typical)
Color Depth	16.7 million colors
Backlight	WLED, No Driver
Refresh Rate	60Hz
Touchscreen	In-Cell Touch
Signal Type	MIPI (4 data lanes)
Voltage Supply	1.8/3.3V (IOVCC/VDD)
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C

Key Features

Portrait orientation display
Integrated In-Cell Touch technology
WLED backlight system
HADS work mode with normally black, transmissive design
Built-in NT35521S driver IC
Originally designed for Tab M10 HD X306FC applications

Application

Ideal for tablets, pads, and portable computing devices requiring high-quality display performance with integrated touch functionality.

Important Note: This model has been discontinued. For integration into future products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications. The information provided here is for reference only and should not be used as the sole basis for decision-making.
