AUO 15.6 Inch PC LCD Module B156HANAC.H with 1920x1080 Pixels and 30PIN Connector for High Resolution Display

Name: AUO 15.6 Inch PC LCD Module B156HANAC.H with 1920x1080 Pixels and 30PIN Connector for High Resolution Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: B156HANAC.H
Price: 30.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	B156HANAC.H
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

400ccd/m2

Resolution:

1920*1080pixels

Contrast Ratio:

1200:1

Color:

16.7M

Working Life:

30k Hours

Connector:

51P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

1920x1080 Pixels PC LCD Module

15.6 Inch Size TFT-LCD Display Panel

30PIN Connector LCM

Product Description

AUO 15.6-Inch PC LCD Module

High-resolution 1920*1080 FHD display with 141 PPI and 30-pin eDP connector for laptop applications

Product Overview

B156HANAC.H (Product Code: AUO61BC) is a 15.6-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integrated WLED backlight system with LED driver. This industrial-grade display module offers exceptional clarity and performance for demanding applications.

Key Features

• 15.6-inch FHD resolution (1920*1080 pixels)
• 141 PPI pixel density for sharp image quality
• eDP 1.4 interface with 30-pin connector
• WLED backlight with 15,000-hour lifespan
• AMD FreeSync technology support
• 100% sRGB color gamut
• Matte anti-glare surface treatment
• Slim profile design (PCBA flat, T≤3.2mm)

Technical Specifications

Parameter	Specification
Model Number	B156HANAC.H
Panel Type	a-Si TFT-LCD, LCM
Active Area	344.16 * 193.59 mm
Outline Dimensions	350.66 * 215.34 * 2.75 mm
Brightness	500 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Response Time	30 ms (Typical, Tr+Td)
Display Colors	16.7 million (100% sRGB)
Refresh Rate	60Hz
Signal Interface	eDP (2 Lanes), eDP1.4, 30-pin connector
Input Voltage	3.3V (Typical)

Environmental Specifications

Operating Temperature 0°C to 50°C

Storage Temperature -20°C to 60°C

Max Vibration 1.5G (14.7 m/s²)

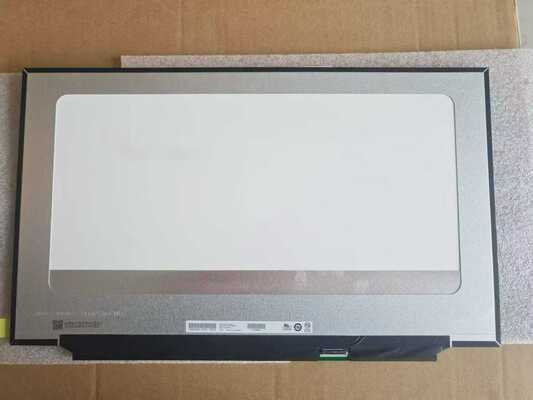

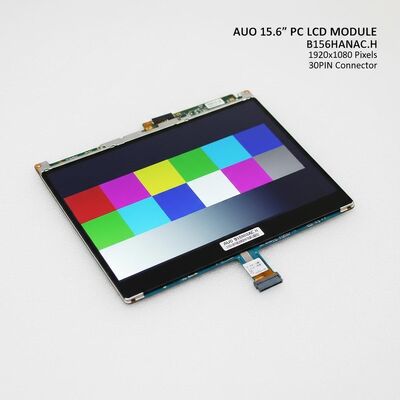

Product Image

Important Note: Mass production for this model is scheduled for Q4 2025. Einklcd strongly recommends contacting AUO or their authorized agents for the latest production status and detailed specifications before integration into your products. Product information on einklcd.com is for reference only and should not be used as the sole basis for decision-making.
