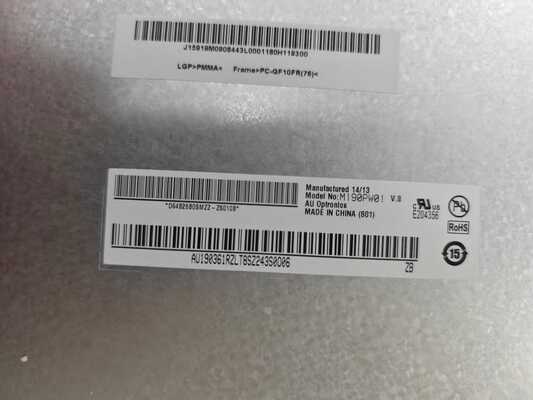

AUO 19inch Desktop LCD Module with 1440x900 Pixels 89PPI 30pin ​M190PW01 V.8 Laptop lcd panel

The M190PW01 V8 (Alias: M190PW01 V.8) is a 19.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: WLED Backlight, Upside I/F, Matte , TCO 5.1 Compliance, PART NO.:97.19M09.800. Based on its features, Einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in Einklcd this model mass production on Q1, 2011 and last shippment on Q1, 2019, Now this model is discontinued. We inputted this model's specification on Apr 10 2013 for the first time, and the latest update on Sep 2 2024. If you want to embed M190PW01 V8 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The M190PW01 V8 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand: AUO

Model P/N: M190PW01 V8
Diagonal Size:19.0"

Panel Type: a-Si TFT-LCD, LCM
Resolution:1440(RGB)×900, WXGA+ 89PPI

Pixel Format: RGB Vertical Stripe
Active Area: 408.24(W)×255.15(H) mm

Bezel Opening: 412.24(W)×259.15(H) mm
Outline Size: 428(W)×278(H) ×10.8(D) mm

SurfaceAntiglare, Hard coating (3H)
Brightness: 250 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode: TN, Normally White, Transmissive
Best View on-Response Time: 3.6/1.4 (Typ.)(Tr/Td)
Display Colors 16.7M 72% NTSC

Lamp Type: 13S4P WLED , 30K hours , Without Driver
Frequency: 75Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Screen: Without
Panel Weight: 1.45Kgs (Typ.)

Application: Desktop Monitor
Signal Interface: LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage: 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ;

Storage Temp.: -20 ~ 60 °C
