AUO 19inch Desktop LCD Module with 1440x900 Pixels 250 cd/m² Brightness and 30pin Connector

Name: AUO 19inch Desktop LCD Module with 1440x900 Pixels 250 cd/m² Brightness and 30pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M190PW01 V.8
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	M190PW01 V.8
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1440*900 Ixels

Style:

FHD 30P

Brightness:

250 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

30K Hours

Screen Size:

19inch

Packaging Details:

Industrial packing

Highlight:

1440x900 Pixels LCD Module

250 cd/m² Brightness TFT-LCD Display Panel

30pin Connector Desktop LCD Monitor

Product Description

AUO 19-inch Desktop LCD Module - M190PW01 V.8

The M190PW01 V.8 is a 19.0-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp., featuring WXGA+ resolution (1440×900), WLED backlight system, and LVDS interface. This industrial-grade panel is designed for desktop monitor applications with robust performance specifications.

Product Overview

This AUO LCD module features an integral WLED backlight system without driver, matte surface with hard coating (3H), and TCO 5.1 compliance. Originally mass produced in Q1 2011 with last shipment in Q1 2019, this model is now discontinued.

Technical Specifications

Brand:

AUO

Model P/N:

M190PW01 V8

Diagonal Size:

19.0"

Panel Type:

a-Si TFT-LCD, LCM

Resolution:

1440(RGB)×900, WXGA+ 89PPI

Active Area:

408.24×255.15 mm

Brightness:

250 cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.)

Viewing Angle:

85/85/80/80 (L/R/U/D)

Response Time:

3.6/1.4 ms (Tr/Td)

Display Colors:

16.7M, 72% NTSC

Signal Interface:

LVDS (2 ch, 8-bit), 30 pins

Input Voltage:

5.0V (Typ.)

Operating Temp:

0 ~ 50°C

Storage Temp:

-20 ~ 60°C

Panel Weight:

1.45 kg (Typ.)

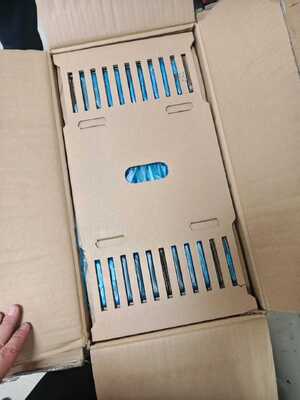

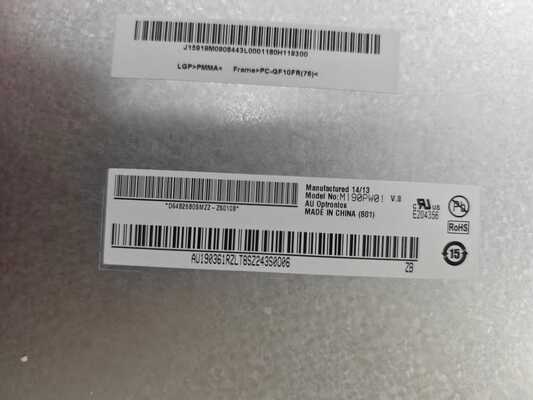

Product Images

Important Note: This model is discontinued. For integration into future products, contact AUO or their agent for latest production and specification details. Information provided is for reference only and should not be used as the sole basis for decision making.
