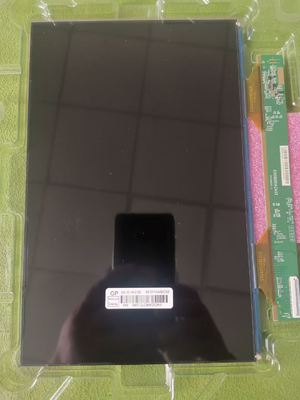

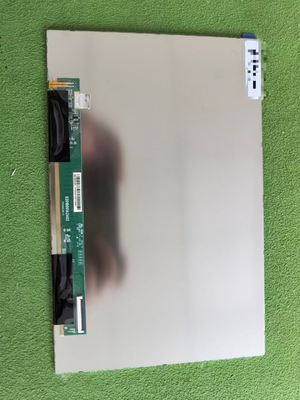

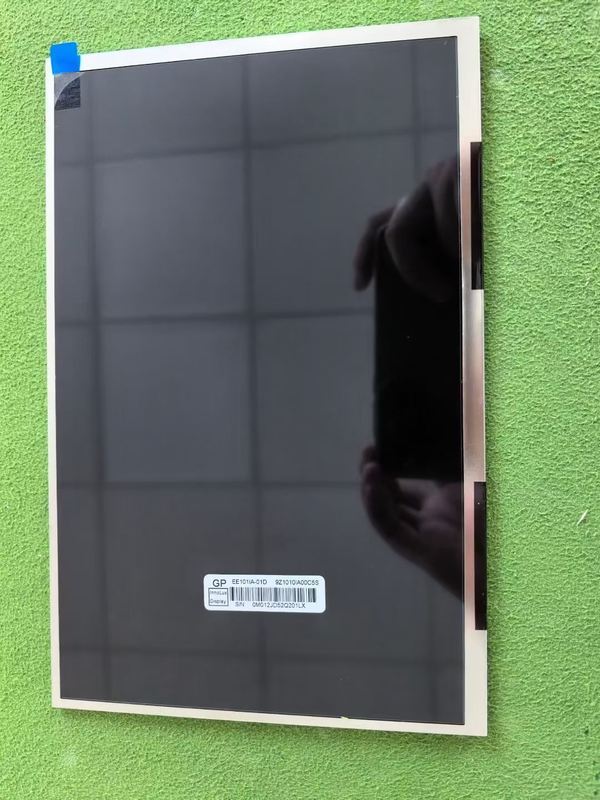

Innolux 10.1 Inch 1280x800 Pixels 40pin IPS LCD Module for Pad & Tablet PC

Name: Innolux 10.1 Inch 1280x800 Pixels 40pin IPS LCD Module for Pad & Tablet PC
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: EE101IA-01D
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	EE101IA-01D
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*800pixels

Style:

40PIN IPS

Brightness:

250CD/M2

Color:

16.7M

Contrast Ratio:

800 :1

Working Life:

30K Hours

Screen Size:

10.1inch

Touch Screen:

Without

Packaging Details:

Industrial packing

Highlight:

10.1 Inch LCD Module

1280x800 Pixels TFT-LCD Display

40pin IPS PC LCD Panel

Product Description

Innolux 10.1-Inch Tablet LCD Display Panel

The Innolux EE101IA-01D is a high-quality 10.1-inch diagonal a-Si TFT-LCD display panel designed for tablet and mobile computing applications. This panel features advanced IPS technology with FHD resolution and delivers exceptional visual performance.

Product Overview

This display panel operates without an integrated backlight or touch screen, providing flexibility for custom integration. With its wide operating temperature range and robust construction, it's ideal for various portable computing devices.

Technical Specifications

Brand	Innolux
Model Number	EE101IA-01D
Diagonal Size	10.1 inches
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1280(RGB)×800 (WXGA), 149 PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W) × 135.6(H) mm
Outline Dimensions	223.95(W) × 144.24(H) × 1.06(D) mm
Surface Treatment	Hard coating
Contrast Ratio	800:1 (Typical)
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Display Mode	IPS, Normally Black, Transmissive
Response Time	10/15 ms (Typical, Tr/Td)
Glass Depth	0.40+0.40 mm (CF Depth + Array Depth)
Transmissivity	5.85% (Typical)
Display Colors	16.7M, 50% NTSC
Backlight	No backlight, without driver
Refresh Rate	60Hz (120Hz with embedded MEMC circuit)
Touch Screen	Without
Driver IC	COG Built-in EK79202
Panel Weight	80.0g (Typical)
Application	Pad & Tablet
Signal Interface	LVDS (1 channel, 8-bit), 40-pin connector
Input Voltage	2.5/8.2/15/-13V (VDD/AVDD/VGH/VGL)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Important Note: This model entered mass production in Q4 2012 and is currently in production. For the most current production status and detailed specifications, we recommend contacting Innolux or their authorized distributors directly. The information provided here is for reference purposes only.
