Innolux 7inch PC LCD Module with 800*480 Pixels Resolution and 400 cd/m² Brightness

Name: Innolux 7inch PC LCD Module with 800*480 Pixels Resolution and 400 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AT070TN83V.1
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	AT070TN83V.1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*480 Ixels

Style:

FHD 30P

Brightness:

400 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

20K Hours

Packaging Details:

Industrial packing

Highlight:

7inch PC LCD Module

800*480 Pixels TFT-LCD Display Panel

400 cd/m² Brightness LCD Monitor Panel

Product Description

Innolux 7-inch Desktop LCD Display Module AT070TN83V.1

The Innolux AT070TN83 V.1 is a 7.0-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. This industrial-grade LCD module features 800×480 WVGA resolution and is designed for reliable performance in demanding applications.

Key Features

7.0-inch diagonal display with 800×480 resolution (133 PPI)
WLED backlight with integrated LED driver
Wide operating temperature range: -20°C to 70°C
High brightness: 400 cd/m² typical
1000:1 contrast ratio
40-pin TTL signal connector
U/D, L/R reverse functionality
SYNC & DE mode operation

Technical Specifications

Model Number	AT070TN83 V.1
Panel Type	a-Si TFT-LCD, LCM
Active Area	152.4 × 91.44 mm
Outline Dimensions	165 × 104 × 5.8 mm
Pixel Format	RGB Vertical Stripe
Viewing Angle	70/70/50/70 (L/R/U/D, CR≥10)
Response Time	25 ms (Typ.)
Color Depth	262K, 50% NTSC
Backlight	WLED, 20K hours lifespan
Refresh Rate	60Hz (120Hz with embedded MEMC circuit)
Signal Type	TTL (1 ch, 6-bit), 40-pin connector
Operating Voltage	3.3V (Typ.)
Weight	113g (Typ.)

Environmental Specifications

Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Max Vibration Level	1.5G (14.7 m/s²)

Recommended Applications

This LCD module is ideally suited for digital photo frames, portable DVD players, MP3/PMP devices, and other portable electronic equipment requiring reliable display performance.

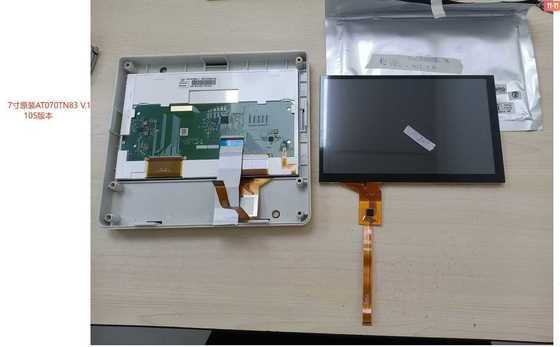

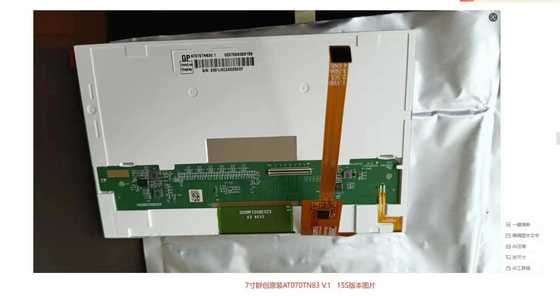

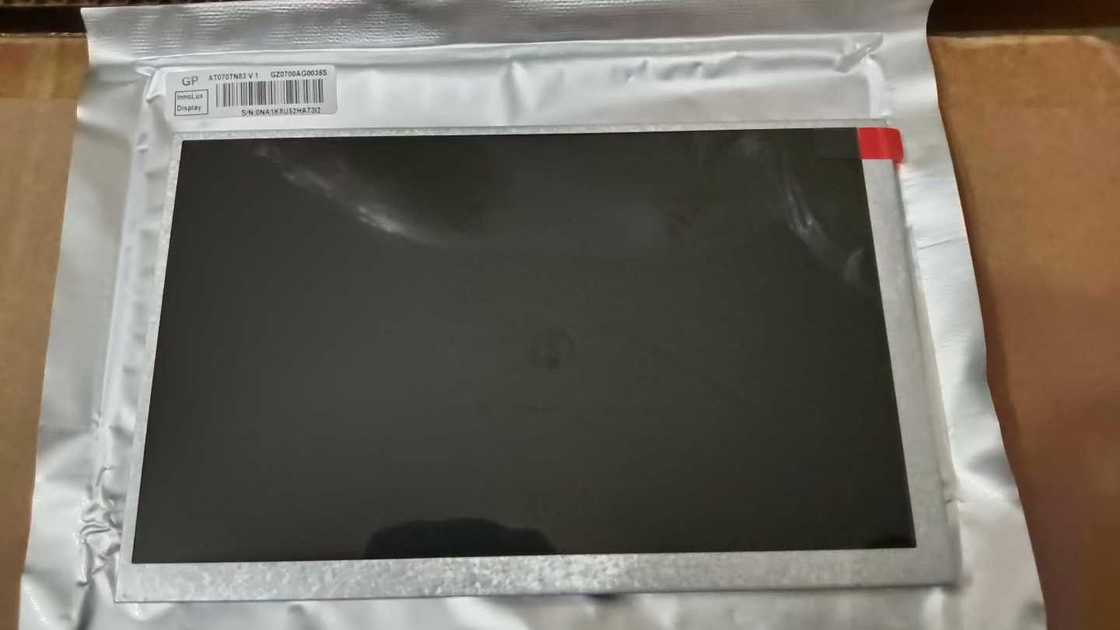

Product Images

Important Note: Production status information is provided for reference only. For the latest production availability and detailed specifications, please contact Innolux or their authorized distributors directly.
