BOE 12.7 Inch LCD Display Panel with 1600x2176 Pixels Resolution and In-Cell Touch for Tablets

BOE 12.7 Inch LCD Display Panel with 1600x2176 Pixels Resolution and In-Cell Touch for Tablets

Brand Name: BOE
Model Number: TV127xum-lb4
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
800*1280pixels
Style:
39PIN IPS
Brightness:
400CD/M2
Color:
16.7M
Contrast Ratio:
880 :1
Working Life:
10K Hours
Screen Size:
12.7inch
Touch Screen:
On-Cell Touch, I²C
Packaging Details:
Industrial packing
Highlight:

12.7 inch LCD Display Panel

,

1600x2176 Pixels TFT-LCD Module

,

In-Cell Touch LCD Screen

Product Description
BOE 12.7-Inch Tablet LCD Display Panel TV127XUM-LB4
High-resolution 12.7-inch display panel featuring 1600×2176 pixels FHD resolution with 212 PPI density, designed specifically for tablet and pad applications.
Product Overview
The TV127XUM-LB4-D9P1 is a 12.7-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system and In-Cell Touch technology. This panel is engineered for reliable performance in pad and tablet devices.
Key Specifications
Brand BOE
Model Number TV127XUM-LB4-D9P1
Diagonal Size 12.7 inches
Panel Type a-Si TFT-LCD Assembly
Resolution 1600(RGB)×2176 pixels (212 PPI)
Active Area 191.04mm (W) × 259.814mm (H)
Pixel Format RGB Vertical Stripe
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Left/Right/Up/Down
Color Support 16.7 Million colors
Contrast Ratio 880:1 (Typical)
Response Time 30ms (Typical, Tr+Td)
Frame Rate 60Hz (with 120Hz Embedded MEMC Circuit and 240Hz options)
Technical Features
  • In-Cell Touch technology with I²C interface
  • WLED backlight system (10,000 hours lifespan)
  • MIPI interface (2 ch, 4 data lanes) connector
  • Multiple refresh rate support: 60Hz, 120Hz, and 240Hz modes
  • Embedded MEMC Circuit for enhanced motion performance
Environmental Specifications
Operating Temperature -10°C to 60°C
Storage Temperature -25°C to 70°C

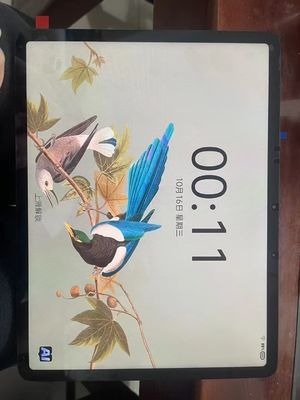

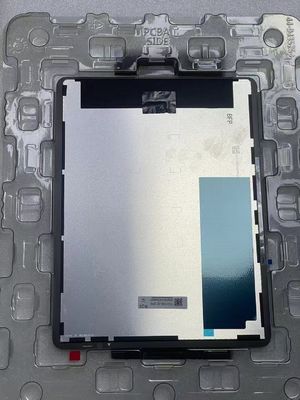

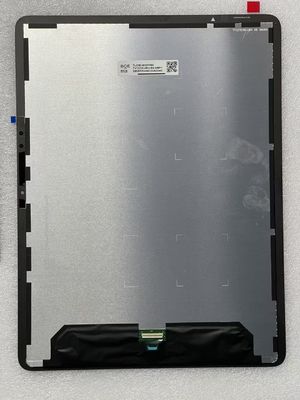

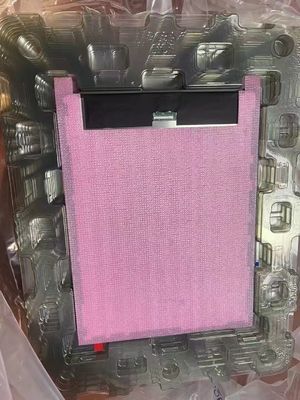

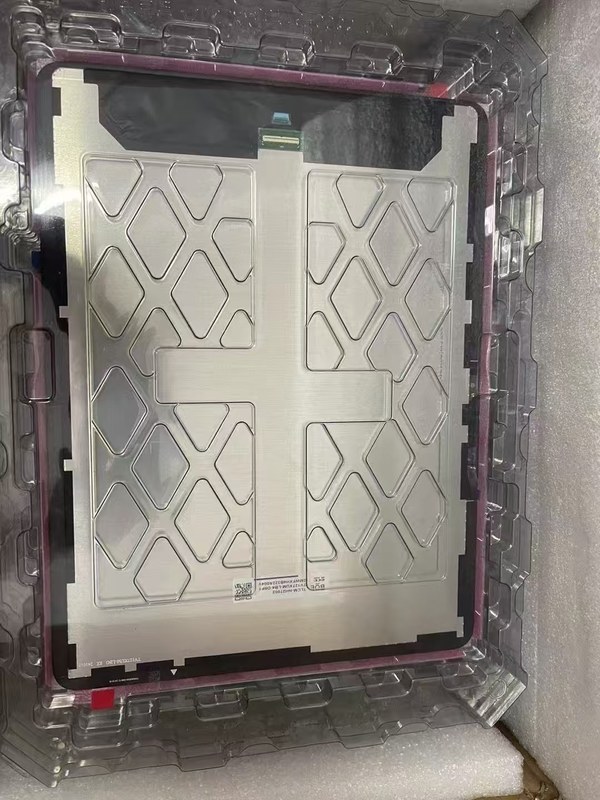

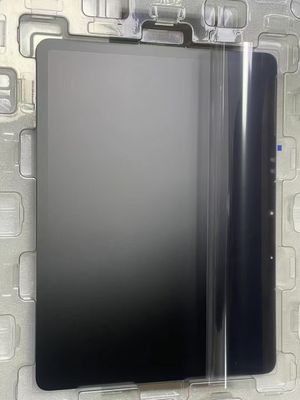

Product Images
BOE 12.7 Inch LCD Display Panel with 1600x2176 Pixels Resolution and In-Cell Touch for Tablets 0 BOE 12.7 Inch LCD Display Panel with 1600x2176 Pixels Resolution and In-Cell Touch for Tablets 1
Important Note: This model is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting BOE or their authorized agents directly. The information provided here is for reference purposes only and should not be used as the sole basis for decision-making.
