AUO 15.6 Inch LCD Display with 1920x1080 Resolution and 500 cd/m² Brightness TFT-LCD Panel

Name: AUO 15.6 Inch LCD Display with 1920x1080 Resolution and 500 cd/m² Brightness TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: B156HANAC.H
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	B156HANAC.H
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

30PIN IPS

Brightness:

500CD/M2

Color:

16.7M

Contrast Ratio:

800 :1

Working Life:

15K Hours

Type:

Lcm

Size:

15.6Inch

Lamp Type:

WLED

Voltage:

3.3 V

Packaging Details:

Industrial packing

Highlight:

15.6 Inch LCD Display

1920x1080 Resolution TFT-LCD Panel

500 cd/m² Brightness LCM

Product Description

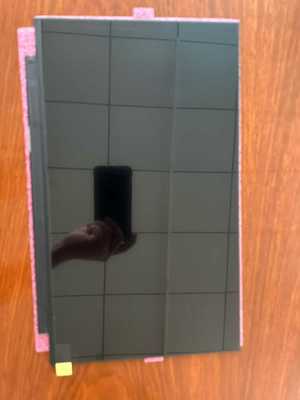

AUO B156HANAC.H 15.6" FHD LCD Display Panel

The B156HANAC.H (Product Code: AUO61BC) is a 15.6-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp., featuring an integrated WLED backlight system with LED driver and no touch screen capability.

Key Features

WLED Backlight with LED Driver
Reverse Interface Technology
Matte Anti-glare Surface
AMD FreeSync Support
eDP 1.4 Interface with PSR2
Free-Sync Compatibility

Technical Specifications

Brand	AUO
Model P/N	B156HANAC.H
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920×1080 (FHD), 141 PPI
Active Area	344.16×193.59 mm
Outline Size	350.66×215.34×2.75 mm
Brightness	500 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	85/85/85/85 (CR≥10)
Display Mode	AHVA, Normally Black, Transmissive
Response Time	30 ms (Typical, Tr+Td)
Display Colors	16.7M, 100% sRGB
Lamp Type	WLED, 15K hours, With LED Driver
Frequency	60Hz

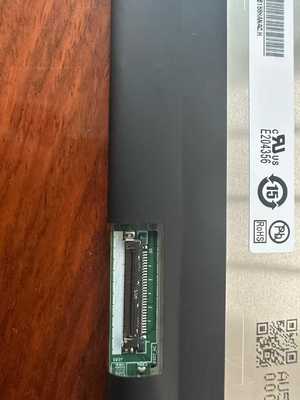

Signal Interface	eDP (2 Lanes), eDP1.4, 30-pin Connector
Input Voltage	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Max Vibration Level	1.5G (14.7 m/s²)

Application

This display panel is recommended for laptop applications and features a slim design with PCBA flat configuration (T≤3.2mm).

Production Information: This model entered mass production in Q4 2025 and is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting AUO or their authorized agents directly.
