AUO 15.6inch 1920x1080 Pixels PC LCD Module with 250 cd/m² Brightness for Desktop Monitor

Name: AUO 15.6inch 1920x1080 Pixels PC LCD Module with 250 cd/m² Brightness for Desktop Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: B156HANAA.0
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	B156HANAA.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080 Ixels

Style:

FHD 30P

Brightness:

250 CCD M2

Color:

16.7M

Contrast Ratio:

800 :1

Working Life:

15K Hours

Screen Size:

15.6inch

Packaging Details:

Industrial packing

Highlight:

15.6inch PC LCD Module

1920x1080 Pixels LCD Display Panel

250 cd/m² TFT-LCD Display

Product Description

AUO B156HANAA.0 15.6-inch LCD Display Module

The AUO B156HANAA.0 is a 15.6-inch diagonal a-Si TFT-LCD display panel featuring Full HD 1920×1080 resolution with 141 PPI pixel density. This PC LCD module utilizes an integral WLED backlight system with LED driver and is designed primarily for laptop applications.

Key Features

• 15.6-inch diagonal display with 1920×1080 Full HD resolution
• a-Si TFT-LCD technology with AHVA operating mode
• WLED backlight system with integrated LED driver

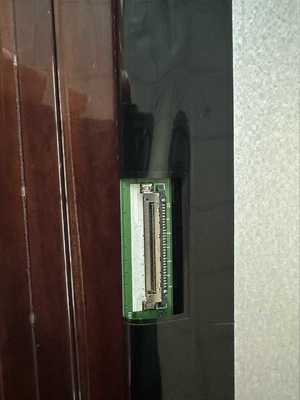

• eDP 1.2 interface with 30-pin connector
• Matte anti-glare surface treatment
• Slim form factor design for space-constrained applications

Technical Specifications

Brand: AUO

Model: B156HANAA.0

Panel Type: a-Si TFT-LCD, LCM

Resolution: 1920×1080 (FHD)

Pixel Density: 141 PPI

Active Area: 344.16×193.59 mm

Outline Dimensions: 350.66×216.15×3.2 mm

Brightness: 250 cd/m² (Typ.)

Contrast Ratio: 800:1 (Typ.)

Response Time: 25 ms (Typ.)

Viewing Angle: 85/85/85/85 (L/R/U/D)

Interface: eDP 1.2 (2 Lanes), 30-pin

Power Supply: 3.3V (Typ.)

Frame Rate: 60Hz (Multiple enhancement options available)

Color Support: 262K, 45% NTSC

Backlight Life: 15,000 hours

Environmental Specifications

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 60°C

Vibration Resistance: 1.5G (14.7 m/s²)

Production Status Note: This model entered mass production in Q4 2023 and is currently in production. For the most current production status and detailed specifications, we strongly recommend contacting AUO or their authorized distributors directly. The information provided here is for reference purposes only and should not be used as the sole basis for decision-making.
