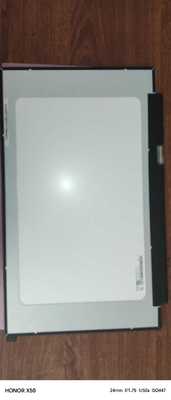

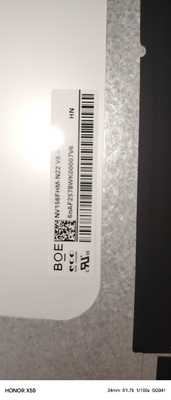

BOE 15.6 Inch PC LCD Display Panel NV156FHM-N22 1920x1080 Pixels FHD 300 cd/m² Brightness 30Pin TFT-LCD Module

BOE 15.6 Inch PC LCD Display Panel NV156FHM-N22 1920x1080 Pixels FHD 300 cd/m² Brightness 30Pin TFT-LCD Module

Brand Name: BOE
Model Number: NV156FHM-N22
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1920*1080pixels
Style:
30PIN IPS
Brightness:
300CD/M2
Color:
16.7M
Contrast Ratio:
1200 :1
Working Life:
15K Hours
Screen Size:
15.6inch
Touch Screen:
Without
Packaging Details:
Industrial packing
Highlight:

15.6 inch PC LCD Display Panel

,

1920x1080 pixels TFT-LCD Module

,

300 cd/m² LCD Monitor Panel

Product Description
BOE 15.6-Inch PC LCD Display Panel NV156FHM-N22
High-performance 15.6-inch FHD LCD panel featuring 1920×1080 resolution, 141 PPI pixel density, and advanced display technologies for laptop applications.
Product Overview
The NV156FHM-N22 is a 15.6-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This panel features an integrated WLED backlight system with LED driver and operates without a touch screen. Designed for laptop applications, it offers excellent visual performance with advanced features including embedded MEMC circuit technology.
Key Features
  • 15.6-inch FHD display with 1920×1080 resolution
  • 141 PPI pixel density for sharp image quality
  • WLED backlight with LED driver
  • eDP 1.2 interface with 30-pin connector
  • Advanced refresh rate options up to 240Hz
  • Antiglare treatment with hard coating (3H)
  • Slim profile design for space-constrained applications
Technical Specifications
Brand BOE
Model Number NV156FHM-N22
Diagonal Size 15.6 inches
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080 (FHD)
Pixel Density 141 PPI
Active Area 344.16×193.59 mm
Luminance 300 cd/m² (Typical)
Contrast Ratio 1200:1 (Typical)
Viewing Angle 85/85/85/85 (Left/Right/Up/Down)
Response Time 30 ms (Typical, Tr+Td)
Color Depth 262K, 45% NTSC
Backlight 8S5P WLED, 15K hours, With LED Driver
Refresh Rate 60Hz standard, up to 240Hz with MEMC
Interface eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
Connector 30 pins
Operating Voltage 3.3V (Typical)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Refresh Rate Capabilities
  • 120Hz (60Hz Input): Embedded MEMC Circuit
  • 120Hz+120Hz: 120Hz Panel + 120Hz Backlight
  • 240Hz (60Hz Input): Embedded MEMC Circuit

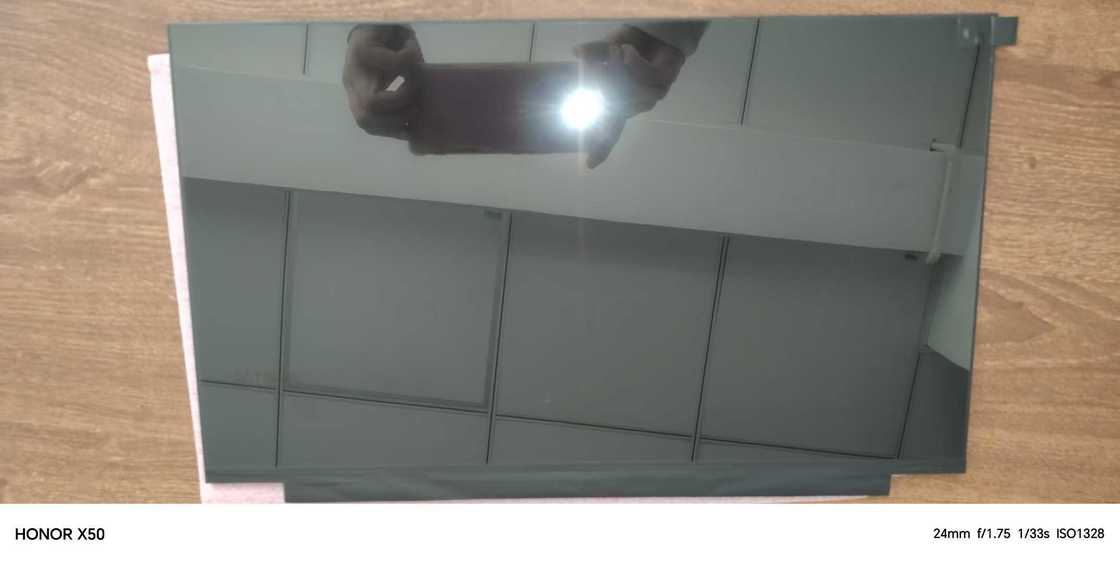

BOE 15.6 Inch PC LCD Display Panel NV156FHM-N22 1920x1080 Pixels FHD 300 cd/m² Brightness 30Pin TFT-LCD Module 0
Production Note: This model entered mass production in Q1 2023 and is currently in production. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and specification details. Information provided is for reference only and should not be used as the sole basis for decision-making.
