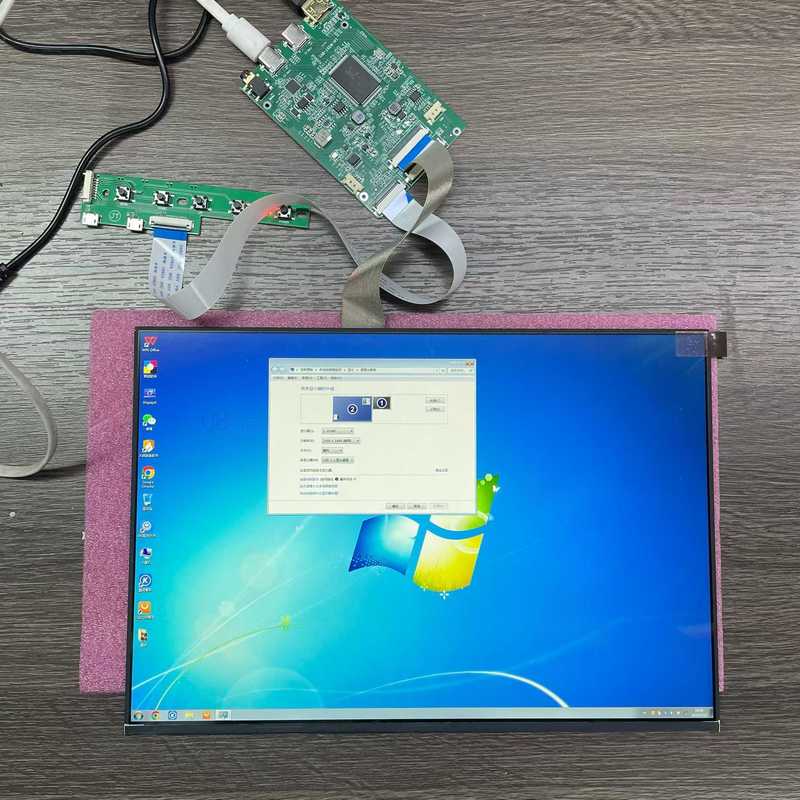

BOE 12.6 Inch LCD Display Panel 2160x1440 Pixels 330 cd/m² Brightness TFT-LCD Module for Pad & Tablet

Name: BOE 12.6 Inch LCD Display Panel 2160x1440 Pixels 330 cd/m² Brightness TFT-LCD Module for Pad & Tablet
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TV126WTM-NW0
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	TV126WTM-NW0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

2160*14408pixels

Style:

40PIN IPS

Brightness:

330CD/M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

15K Hours

Screen Size:

12.6inch

Touch Screen:

Without

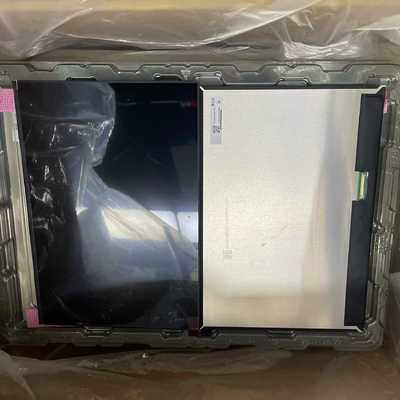

Packaging Details:

Industrial packing

Highlight:

2160x1440 Pixels LCD Display Panel

12.6 Inch TFT-LCD Module

330 cd/m² Brightness BOE Monitor Panel

Product Description

BOE 12.6 Inch Laptop LCD Display Panel TV126WTM-NW0

High-resolution 12.6-inch display panel featuring 2160×1440 pixels FHD resolution with 206 PPI density. This 40-pin LCD panel is designed for tablets and pad applications with advanced display technology.

Product Overview

TV126WTM-NW0 (Product Code: BOE0B36) is a 12.6" diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. featuring an integrated WLED backlight system with LED driver. This panel operates without a touch screen and is engineered for reliable performance across varying environmental conditions.

Key Specifications

Brand: BOE

Model P/N: TV126WTM-NW0

Diagonal Size: 12.6"

Panel Type: a-Si TFT-LCD, LCM

Resolution: 2160×1440 (206 PPI)

Brightness: 330 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.)

Viewing Angle: 85/85/85/85 (CR≥10)

Display Colors: 16.7M (80% NTSC)

Response Time: 30ms (Typ.)

Signal Interface: eDP1.4 (40 pins)

Input Voltage: 3.3V (Typ.)

Operating Temp: -20°C to 60°C

Storage Temp: -30°C to 70°C

Weight: 173g (Max.)

Advanced Features

Frequency Options: 60Hz, 120Hz (with embedded MEMC circuit), 120Hz+120Hz (Panel+Backlight), and 240Hz (with embedded MEMC circuit). Features sRGB color gamut, WLED backlight with driver, and reverse interface technology.

Application

Recommended for tablet and pad applications. Compatible with various IPS and VA technology families including AAS, ADS, AHVA, FFS, HFS, HIS, IPS, PLS, SFT, ASV, FSA, HVA, MVA, PVA, SVA, and UV²A.

Production Note: Mass production began Q1 2023. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications. Information provided is for reference only and should not be used as the sole basis for decision-making.
