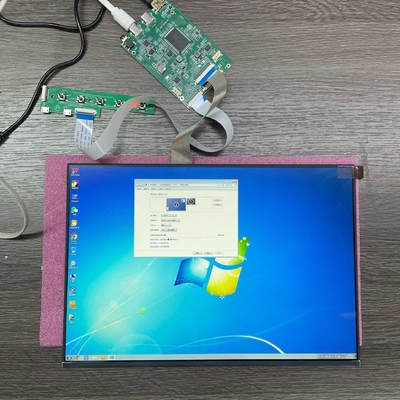

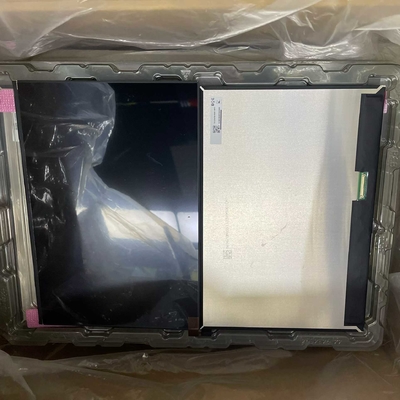

BOE 12.6 Inch LaptopLCD Display Panel TV126WTM-NW0 2160x1440Pixels FHD 206PPI 40Pin Pad lcd tablet lcd

Brand Name:	BOE
Model Number:	TV126WTM-NW0
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

2160*14408pixels

Style:

40PIN IPS

Brightness:

330CD/M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

15K Hours

Screen Size:

12.6inch

Touch Screen:

Without

Supply Ability:

3000pcs per week

Product Description

BOE 12.6 Inch LaptopLCD Display Panel TV126WTM-NW0 2160x1440Pixels FHD 206PPI 40Pin Pad lcd tablet lcd

TV126WTM-NW0 (Product Code: BOE0B36) is a 12.6" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -30 ~ 70°C . It's general features are summarized by Einklcd in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F , eDP1.4. Based on its features, einklcd recommend that this model be applied to Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q1, 2023, Now this model is in production. We inputted this model's specification on Aug 30 2023 for the first time. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of TV126WTM-NW0. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:BOE

Model P/N:TV126WTM-NW0

Diagonal Size:12.6"

Panel Type:a-Si TFT-LCD, LCM

Resolution 2160(RGB)×1440 206PPI

Pixel Format: RGB Vertical Stripe

Active Area 265.68(W)×177.12(H) mm

Bezel Opening-

Outline Size:271.68(W)×186.6(H) ×4.3(D) mm

Brightness:330 cd/m² (Typ.)

Viewing Angle:85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Best View on Symmetry

Display Colors:16.7M 80% NTSC

Frequency:60HZ 120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Weight :173g (Max.)

Surface: Hard coating

Contrast Ratio: 1000:1 (Typ.) (TM)

Display Mode: DS, Normally Black, Transmissive

Response Time:30 (Typ.)(Tr+Td)

Lamp Type:WLED , 15K hours , With LED Driver

Touch Screen: Without

Application:Pad & Tablet

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Signal Interface :eDP (2 Lanes) , eDP1.4 , 40 pins Connector

Input Voltage: 3.3V (Typ.)

Environment Operating Temp.: -20 ~ 60 °C ;

Storage Temp.: -30 ~ 70 °C
