PVI 5inch Industrial LCD Panel with 480×640 Resolution and 900 cd/m² Brightness TFT-LCD Display

Name: PVI 5inch Industrial LCD Panel with 480×640 Resolution and 900 cd/m² Brightness TFT-LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: PD050VXBL
Price: 30.00 USD
Availability: InStock

Brand Name:	PVI
Model Number:	PD050VXBL
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

480*640 Ixels

Style:

Lcm 60pin

Brightness:

900 CCD M2

Color:

16.7M

Contrast Ratio:

600 :1

Working Life:

20K Hours

Screen Size:

5inch

Packaging Details:

Industrial packing

Highlight:

5inch LCD Panel

480×640 Resolution TFT-LCD Display

900 cd/m² Brightness Industrial LCD Module

Product Description

PVI 5-inch LCD Panel PD050VXBL

The PD050VXB is a 5.0-inch diagonal a-Si TFT-LCD display panel from Prime View International Co., Ltd. (PVI), featuring an integrated WLED backlight system. This industrial-grade panel offers high brightness and reliable performance with an operating temperature range of -20°C to 70°C.

Key Specifications

Brand	PVI
Model Number	PD050VXB
Diagonal Size	5.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	480 × 640 pixels (VGA), 160 PPI
Active Area	74.88(W) × 101.76(H) mm
Outline Dimensions	91.4(H) × 119.3(V) × 8.2(D) mm
Luminance	900 cd/m² (Typical)
Contrast Ratio	600:1 (Typical)
Viewing Angle	75/75/50/70 (Left/Right/Up/Down, CR≥10)
Response Time	15/25 ms (Typical, Tr/Td)
Interface	TTL (1 channel, 6-bit), 60-pin FPC
Light Source	WLED [3S10P], 20,000 hours lifespan
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Weight	116 ± 10g

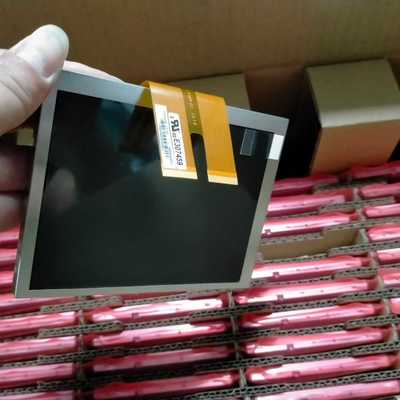

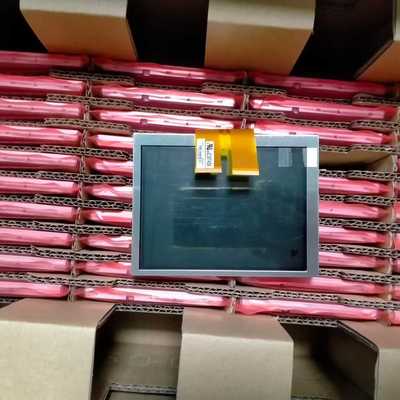

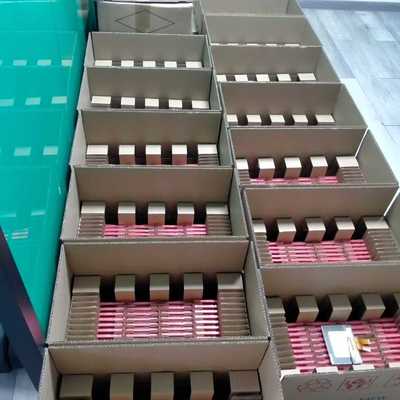

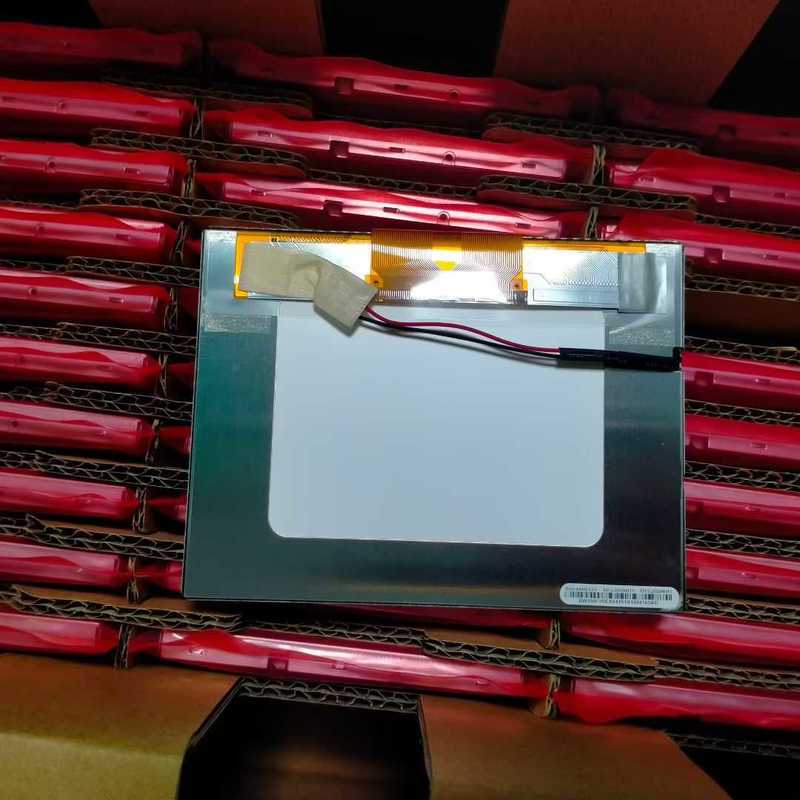

Product Images

Important Note: This model entered mass production in Q4 2011 with final shipments in Q3 2016 and is now discontinued. For integration into future products, we strongly recommend contacting PVI or their authorized agents for the latest production status and specifications. Information provided is for reference only and should not be used as the sole basis for decision-making.
