Innolux 5.6inch LCD Panel AT056TN52 V.3 with 640x480 Pixels and 200 cd/m² Brightness for Industrial Applications

Name: Innolux 5.6inch LCD Panel AT056TN52 V.3 with 640x480 Pixels and 200 cd/m² Brightness for Industrial Applications
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AT056TN52 V.3
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	AT056TN52 V.3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

640*480 Ixels

Style:

FHD 30P

Brightness:

200 CCD M2

Color:

16.7M

Contrast Ratio:

500 :1

Working Life:

20K Hours

Screen Size:

5.6inch

Packaging Details:

Industrial packing

Highlight:

5.6inch LCD Panel

640x480 Pixels TFT-LCD Display

200 cd/m² Brightness Industrial LCD Module

Product Description

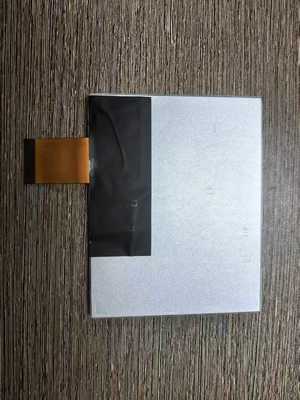

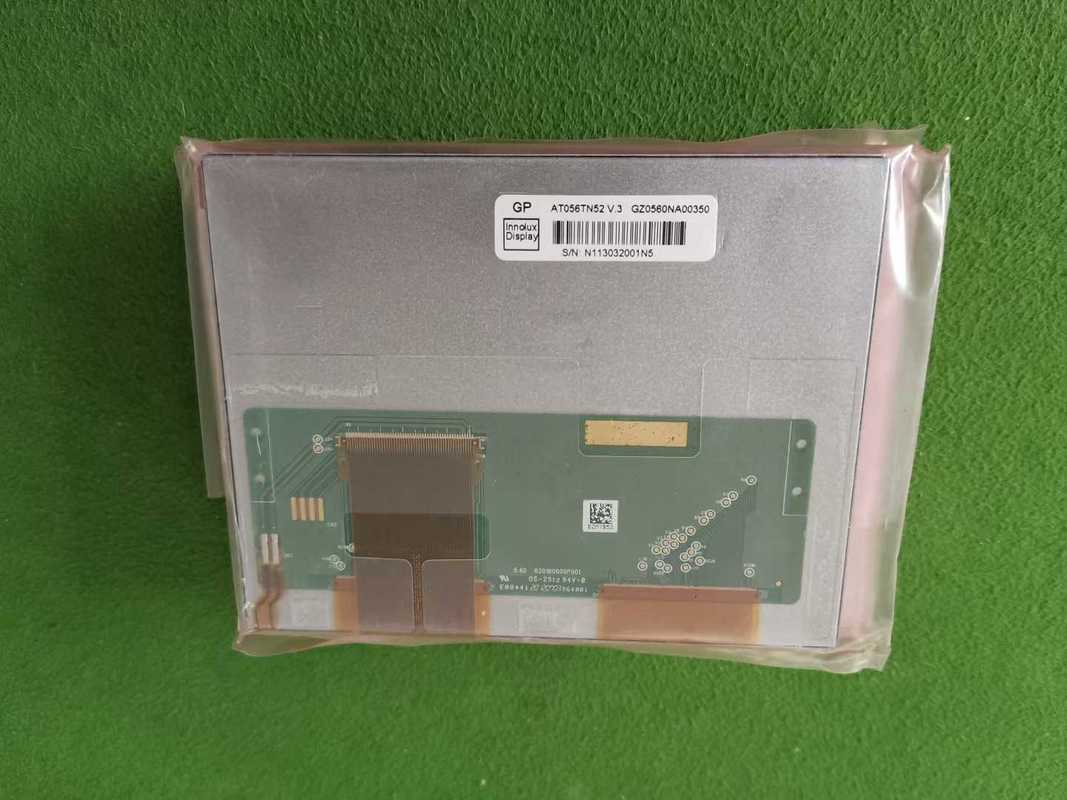

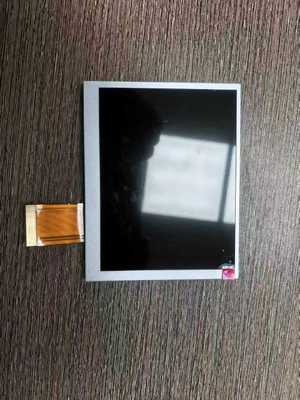

Innolux 5.6-inch LCD Display Panel AT056TN52 V.3

The Chimei Innolux AT056TN52 V.3 is a 5.6-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system. This industrial-grade panel offers reliable performance with an operating temperature range of -20°C to 70°C and storage temperature range of -30°C to 80°C.

Key Features

5.6-inch diagonal display with 640×480 VGA resolution
143 PPI pixel density for clear image quality
WLED backlight system with 20,000-hour lifespan
Industrial-grade construction for demanding environments
Matte anti-glare surface treatment
50-pin FPC interface with parallel RGB connection

Technical Specifications

Brand & Model	Chimei Innolux AT056TN52 V.3
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480 pixels (VGA)
Active Area	112.896mm × 84.672mm
Outline Dimensions	126.5mm × 100mm × 6mm
Luminance	200 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Viewing Angle	70/70/50/70 (Left/Right/Up/Down, CR≥10)
Response Time	10/15 ms (Typical, Tr/Td)
Interface	Parallel RGB (1 channel, 8-bit), 50-pin FPC
Power Supply	3.3V/5.0V/15V/-10V (VCC/AVDD/VGH/VGL)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Weight	127.5g (Typical)

Recommended Applications

This display panel is designed for industrial applications, digital photo frames, video door phones, and VOIP phones.

Important Notice: This model entered mass production in Q2 2009 with last shipment in Q4 2022 and is now discontinued. For current production status and latest specifications, please contact Chimei Innolux or their authorized distributors directly.
