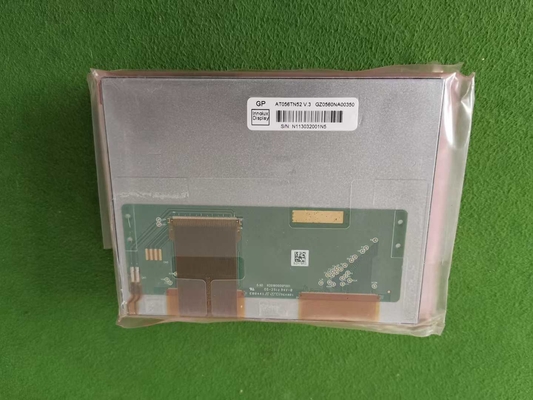

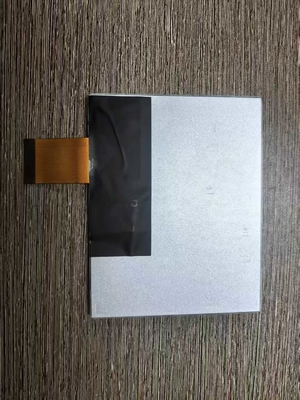

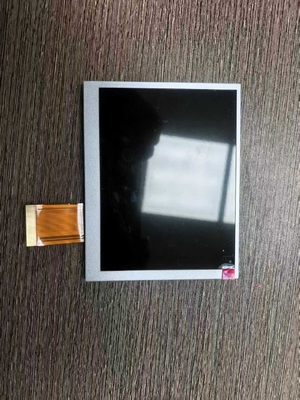

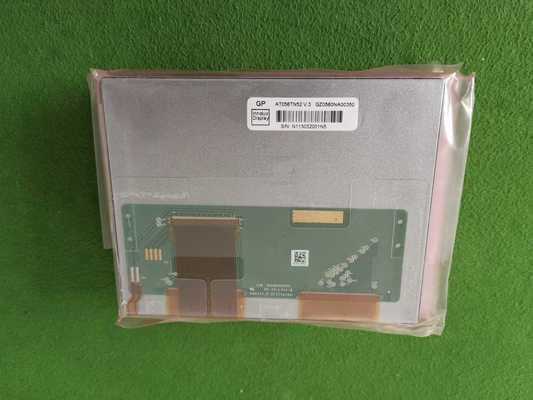

Innolux 5.6inch lcd model AT056TN52 V.3 640* 480Pixels 50PIN 143PPI industrial lcd panel

Chimei Innolux Corporation (hereafter called Chimei Innolux) AT056TN52 V.3 is a 5.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: WLED Backlight, U/D,L/R Reverse, Matte , 2 in 1 FPC. Based on its features, einklcd recommend that this model be applied to Industrial, Digital Photo Frame, Video Door Phone, VOIP Phone etc. According to the information stored in einklcd this model mass production on Q2, 2009 and last shippment on Q4, 2022, Now this model is discontinued. We inputted this model's specification on Aug 14 2012 for the first time, and the latest update on Feb 28 2025. If you want to embed AT056TN52 V.3 LCM in your future product, einklcd strongly recommend that you should contact with Chimei Innolux or it's distributor to learn lateast production and specification detail. The AT056TN52 V.3 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand: Chimei Innolux

Model P/N:AT056TN52 V.3
Diagonal Size: 5.6"

Panel Type: a-Si TFT-LCD, LCM
Resolution 640(RGB)×480, VGA 143PPI

Pixel Format :RGB Vertical Stripe
Active Area 112.896(W)×84.672(H) mm

Bezel Opening:115.70(W)×87.47(H) mm
Outline Dim.126.5(H)×100(V) ×6(D) mm

Treatment :Antiglare
Luminance 200 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)
View Direction 6 o'clock

Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: TN, Normally White, Transmissive
Support Color 16.7M

Light Source: WLED [3S5P] , 20K hours , W/O Driver
Weight: 127.5g (Typ.)

Designed For Industrial, Digital Photo Frame ,Video Door Phone, VOIP Phone
Frame Rate: 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouch PanelWithout
Interface Type:Parallel RGB (1 ch, 8-bit) , 50 pins FPC
Power Supply 3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Environment Operating Temperature: -20 ~ 70 °C ;

Storage Temperature: -30 ~ 80 °C
