BOE 27inch PC LCD Module with 3840×2160 Resolution 350 cd/m² Brightness and 30K Hours Working Life

Name: BOE 27inch PC LCD Module with 3840×2160 Resolution 350 cd/m² Brightness and 30K Hours Working Life
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: MV270QUM-N20
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	MV270QUM-N20
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

3840*2160 Ixels

Style:

Lcm

Brightness:

350 CCD M2

Color:

1.07b

Contrast Ratio:

1000 :1

Working Life:

30K Hours

Screen Size:

27inch

Packaging Details:

Industrial packing

Highlight:

3840×2160 Resolution PC LCD Module

350 cd/m² Brightness LCD Display Panel

30K Hours Working Life Desktop Monitor

Product Description

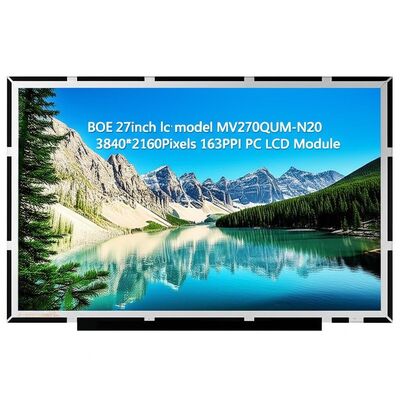

BOE 27-inch LCD Display MV270QUM-N20

High-performance 27-inch UHD LCD module featuring 3840*2160 resolution, 163 PPI density, and advanced display technology for professional desktop monitor applications.

Key Features

27-inch diagonal a-Si TFT-LCD display panel
Ultra HD 3840*2160 resolution with 163 PPI
100% sRGB color gamut coverage
3-side borderless design
10-bit color depth (1.07 billion colors)
WLED backlight with 30,000-hour lifespan
Anti-glare treatment with 3H hard coating
eDP interface with 30-pin connector

Technical Specifications

Model: MV270QUM-N20

Panel Type: a-Si TFT-LCD

Resolution: 3840*2160 (UHD)

Pixel Density: 163 PPI

Active Area: 596.74*335.66 mm

Brightness: 350 cd/m²

Contrast Ratio: 1000:1

Viewing Angle: 89°/89°/89°/89°

Refresh Rate: 60Hz (up to 240Hz with MEMC)

Interface: eDP (4 lanes), 30-pin

Operating Voltage: 10.0V

Weight: 3.22 kg

Environmental Specifications

Parameter	Range
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Max Vibration Level	1.2G (11.76 m/s²)

Refresh Rate Options

60Hz - Standard operation
120Hz - Embedded MEMC circuit (60Hz input)
120Hz+120Hz - 120Hz panel + 120Hz backlight
240Hz - Embedded MEMC circuit (60Hz input)

Production Information: This model entered mass production in Q4 2017 and is currently in active production. For the latest specifications and availability, please contact BOE or their authorized distributors directly.

Application

Recommended for desktop monitor applications requiring high-resolution displays with accurate color reproduction and professional-grade performance.
