AUO 20.1inch 1680x1050 Pixels 300 cd/m² PC LCD Module TFT-LCD Display Panel for Desktop Monitor

Name: AUO 20.1inch 1680x1050 Pixels 300 cd/m² PC LCD Module TFT-LCD Display Panel for Desktop Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M201EW01 V2
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	M201EW01 V2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1680*1050 Ixels

Style:

FHD 30P

Brightness:

300 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

60K Hours

Screen Size:

20.1inch

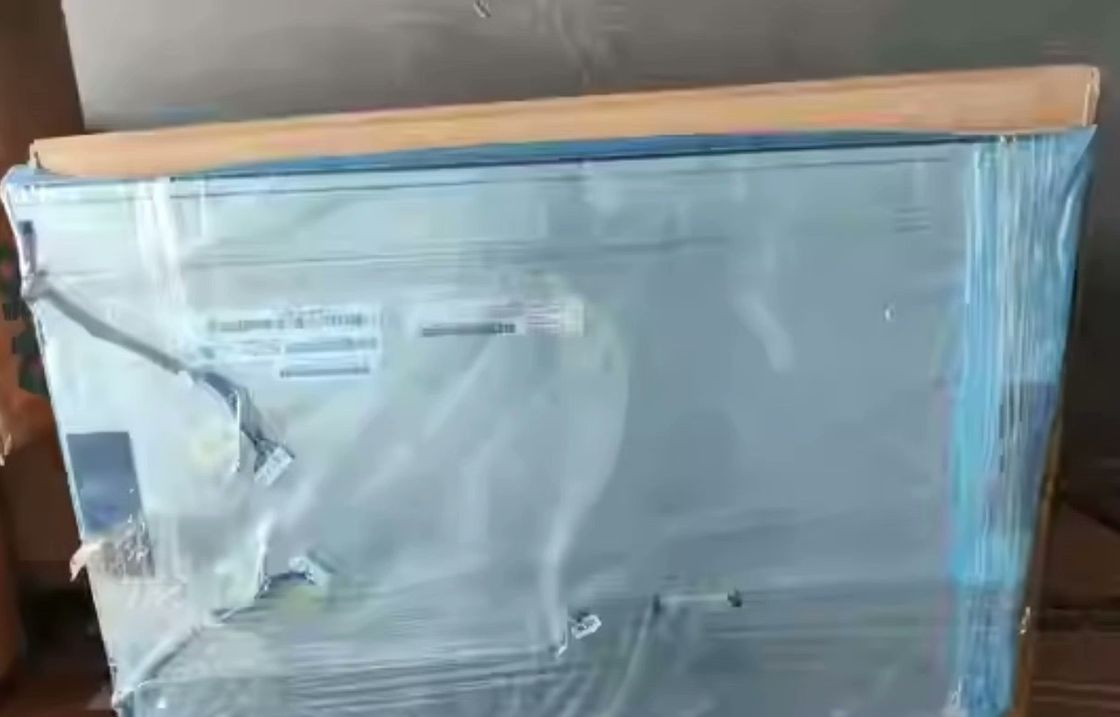

Packaging Details:

Industrial packing

Highlight:

20.1inch PC LCD Module

1680x1050 Pixels TFT-LCD Display Panel

300 cd/m² Desktop Monitor

Product Description

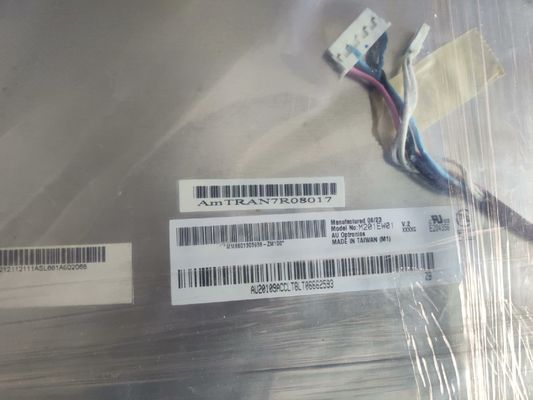

AUO 20.1-inch LCD Display Module M201EW01 V2

The M201EW01 V2 is a 20.1-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp., featuring 1680×1050 WSXGA+ resolution and designed for desktop monitor applications.

Product Overview

This LCD module incorporates an integral CCFL backlight system and operates with AMVA technology in normally black, transmissive mode. The panel offers excellent viewing angles and high contrast ratio suitable for professional desktop applications.

Key Features

20.1-inch diagonal display with 1680×1050 resolution
High 98 PPI pixel density for sharp image quality
300 cd/m² typical luminance with 1000:1 contrast ratio
AMVA technology with wide viewing angles (88/88/88/88)
Fast response time: 11/5 ms (Tr/Td)
Support for 16.7 million colors with 72% NTSC
LVDS interface with 30-pin connector

Technical Specifications

Brand	AU Optronics Corp. (AUO)
Model Number	M201EW01 V2
Panel Type	a-Si TFT-LCD, LCM
Resolution	1680(RGB)×1050 (WSXGA+), 98 PPI
Active Area	433.44mm × 270.9mm
Outline Dimensions	459.4mm × 296.4mm × 23.3mm
Luminance	300 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Response Time	11/5 ms (Tr/Td Typical), 8 ms (G to G Typical)
Viewing Angle	88°/88°/88°/88° (Left/Right/Up/Down, CR≥10)
Interface	LVDS (2 channel, 8-bit), 30-pin connector
Power Supply	5.0V (Typical)
Light Source	CCFL [6 pieces], 60K hours lifespan
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Weight	2.95 kg (Typical)

Frame Rate Capabilities

75Hz standard frame rate
120Hz with embedded MEMC circuit (60Hz input)
120Hz+120Hz: 120Hz panel with 120Hz backlight
240Hz with embedded MEMC circuit (60Hz input)

Important Note: This model entered mass production in Q2 2004 and is currently discontinued. For integration into new products, we strongly recommend contacting AUO or their authorized agents for the latest production status and specifications. Information provided is for reference only and should not be used as the sole basis for decision-making.
