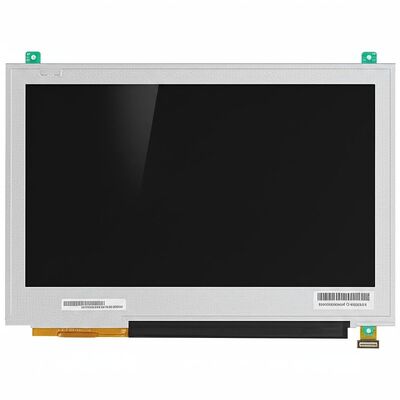

BOE 11.6 Inch LCD Display Panel NT116WHM-N21 1366x768 Pixels 30PIN IPS Industrial TFT-LCD Module

BOE 11.6 Inch LCD Display Panel NT116WHM-N21 1366x768 Pixels 30PIN IPS Industrial TFT-LCD Module

BOE 11.6 Inch LCD Display Panel NT116WHM-N21 1366x768 Pixels 30PIN IPS Industrial TFT-LCD Module

Brand Name: BOE
Model Number: NT116WHM-N21
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1366*768pixels
Style:
30PIN IPS
Brightness:
220CD/M2
Color:
262K
Contrast Ratio:
500 :1
Working Life:
15K Hours
Screen Size:
11.6inch
Touch Screen:
Without
Packaging Details:
Industrial packing
Highlight:

11.6 Inch LCD Display Panel

,

1366x768 Pixels TFT-LCD Module

,

30PIN IPS Industrial LCD

Product Description
BOE 11.6 Inch Laptop LCD Display Panel NT116WHM-N21
The BOE NT116WHM-N21 is a high-quality 11.6-inch industrial LCD display panel featuring 1366*768 WXGA resolution, 135 PPI pixel density, and 30-pin eDP interface. This professional-grade display is engineered for laptop and industrial applications with robust performance characteristics.
Product Overview
BOE Technology Group's NT116WHM-N21 is a 11.6-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system and LED driver. Designed without touch screen capability, this industrial-grade display operates in temperatures from 0°C to 50°C and withstands storage temperatures from -20°C to 60°C with maximum vibration tolerance of 1.5G (14.7 m/s²).
Key Features
  • WLED Backlight with LED Driver
  • Reverse Interface with Matte Finish
  • eDP 1.2 Interface Protocol
  • Antiglare Hard Coating (3H)
  • Slim Profile Design (PCBA Flat, T≤3.2mm)
  • Embedded MEMC Circuit for Enhanced Refresh Rates
Technical Specifications
Model Number NT116WHM-N21
Diagonal Size 11.6 inches
Panel Type a-Si TFT-LCD, LCM
Resolution 1366*768 (WXGA), 135 PPI
Active Area 256.125*144 mm
Outline Dimensions 278*168*3 mm (H*V*D)
Luminance 220 cd/m² (Typical)
Contrast Ratio 500:1 (Typical)
Viewing Angle 45/45/20/40 (Left/Right/Up/Down, CR≥10)
Response Time 12 ms (Typical, Tr+Td)
Color Depth 262K colors, 45% NTSC
Backlight 8S3P WLED, 15K hours lifespan
Refresh Rate 60Hz native, up to 240Hz with MEMC
Interface eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane), 30-pin connector
Operating Voltage 3.3V (Typical)
Application Areas
This display panel is specifically recommended for laptop computers and industrial equipment applications where reliability, durability, and consistent performance are essential.
BOE 11.6 Inch LCD Display Panel NT116WHM-N21 1366x768 Pixels 30PIN IPS Industrial TFT-LCD Module 0
Production Note: This model entered mass production in Q4 2014 and remains in current production. For the latest production status and specification details for embedding in your products, we strongly recommend contacting BOE or their authorized distributors directly. Information on einklcd.com is for reference only and should not be used as the sole basis for decision-making.
