BOE 23.8inch PC LCD Module MV238QHM-N10 with 2560×1440Pixels Resolution 300CD/M2 Brightness and 81pin Connector

Brand Name:	BOE
Model Number:	MV270QHM-NF2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

XGA

Style:

Wide Screen High Resolution 2560*1440Pixels

Brightness:

300cd

Connector:

81PIN

Contrast Ratio:

1000:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

81pin Desktop lcd panel

23.8inch Desktop lcd panel

MV238QHM-N10 Desktop lcd panel

Product Description

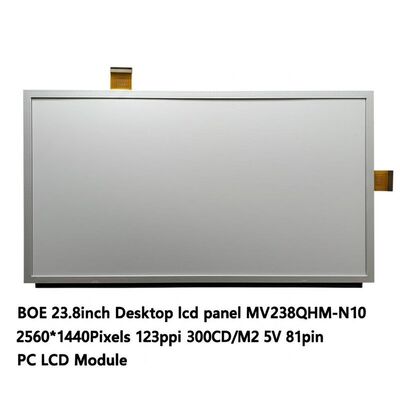

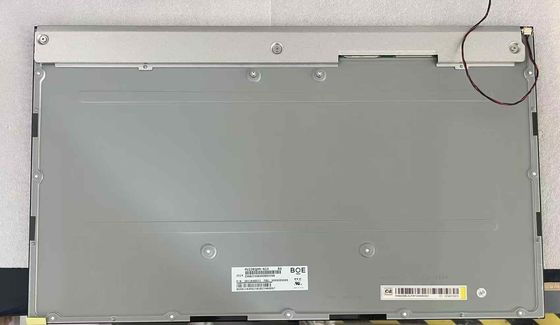

BOE 23.8-inch Desktop LCD Panel MV238QHM-N10

High-resolution 2560*1440 Quad-HD PC LCD module with 123 PPI, 300 cd/m² brightness, and 5V power input.

Product Overview

The MV238QHM-N10 is a 23.8-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This panel features an integrated WLED backlight system and is designed for professional applications including desktop monitors and medical imaging.

Key Features

23.8-inch Quad-HD resolution (2560*1440 pixels)
123 PPI pixel density for sharp image quality
300 cd/m² typical brightness
1000:1 contrast ratio
99% sRGB color gamut supporting 16.7 million colors
75Hz refresh rate
3-side borderless design
Antiglare surface with hard coating (3H)
LVDS interface with 81-pin connector
TCO 8.0 and ES 8.0 compliant

Technical Specifications

Brand	BOE

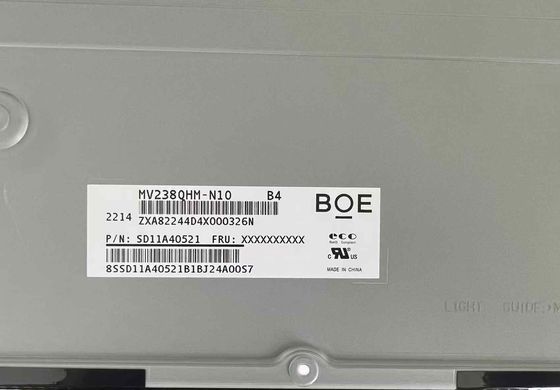

Model Number	MV238QHM-N10
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)*1440 (Quad-HD)
Active Area	526.848mm * 296.352mm
Outline Dimensions	535mm * 313mm * 13.7mm
Viewing Angle	89/89/89/89 (Typ.)
Response Time	14ms (Typ., G to G)
Display Mode	ADS, Normally Black, Transmissive
Backlight	16S4P WLED, 30,000 hours, Without Driver
Input Voltage	5.0V (Typical)
Panel Weight	2.22kg (Typical) / 2.44kg (Maximum)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	1.5G (14.7 m/s²)

Applications

Recommended for desktop monitors, medical imaging, and professional display applications.

Important Note: This model entered mass production in Q3 2017 and is currently in production. We recommend contacting BOE or their authorized agents for the latest production status and specification details before integration into your products. Information provided is for reference only and should not be used as the sole basis for decision-making.
