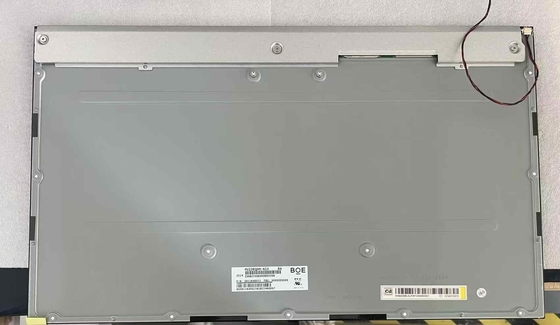

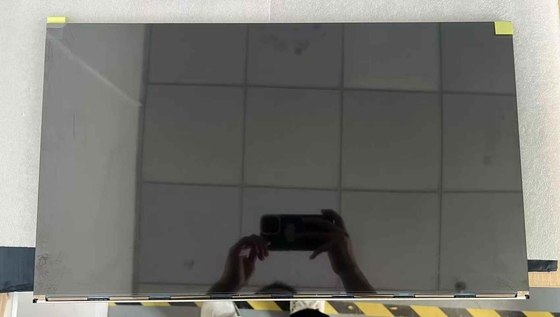

BOE 23.8inch Desktop lcd panel MV238QHM-N10 2560*1440Pixels 123ppi 300CD/M2 5V 81pin PC LCD Module

Brand Name:	BOE
Model Number:	MV270QHM-NF2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

XGA

Style:

Wide Screen High Resolution 2560*1440Pixels

Brightness:

300cd

Connector:

81PIN

Contrast Ratio:

1000:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

81pin Desktop lcd panel

23.8inch Desktop lcd panel

MV238QHM-N10 Desktop lcd panel

Product Description

BOE 23.8inch Desktop lcd panel MV238QHM-N10 2560*1440Pixels 123ppi 300CD/M2 5V 81pin PC LCD Module

The MV238QHM-N10 is a 23.8 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, Matte , TCO 8.0 , ES 8.0 compliant. Based on its features, einklcd recommend that this model be applied to Desktop Monitor, Medical Imaging etc. According to the information stored in einklcd this model mass production on Q3, 2017, Now this model is in production. We inputted this model's specification on Aug 30 2018 for the first time, and the latest update on Mar 6 2025. If you want to embed MV238QHM-N10 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The MV238QHM-N10 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand: BOE

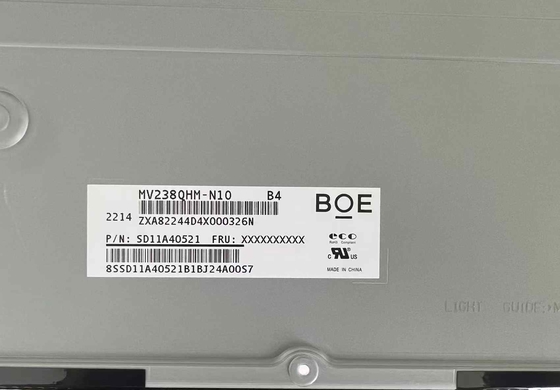

Model P/N: MV238QHM-N10

Diagonal Size: 23.8"
Panel Type: a-Si TFT-LCD, LCM

Resolution: 2560(RGB)×1440, Quad-HD 123PPI
Pixel Format: RGB Vertical Stripe

Active Area: 526.848(W)×296.352(H) mm
Bezel Opening: -

Outline Size
535(W)×313(H) ×13.7(D) mm
Surface
Antiglare (Haze 25%), Hard coating (3H)

Brightness
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)

Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
ADS, Normally Black, Transmissive

Best View on
Symmetry
Response Time
14 (Typ.)(G to G)

Display Colors
16.7M 99% sRGB
Lamp Type
16S4P WLED , 30K hours , Without Driver

Frequency
75Hz
Touch Screen
Without

Panel Weight
2.22/2.44Kgs (Typ./Max.)
Application

Signal Interface
LVDS (4 ch, 8-bit) , 81 pins Connector

Input Voltage
5.0V (Typ.)

Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
