IVO M140NW4D R4 14" LCD Panel PC LCD Module with 1920x1200 Resolution 300cd/m2 Brightness and 15k Hours Working Time

Name: IVO M140NW4D R4 14" LCD Panel PC LCD Module with 1920x1200 Resolution 300cd/m2 Brightness and 15k Hours Working Time
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M140NW4D R4
Price: 30.00 USD
Availability: InStock

Brand Name:	IVO
Model Number:	M140NW4D R4
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

XGA

Style:

Wide Screen High Resolution 1920*1200Pixels

Brightness:

300cd

Connector:

EPD 2 Lanes

Contrast Ratio:

1000:1

Working Time:

15k Hours

Packaging Details:

Industrial packing

Highlight:

14” LCD Panel

M140NW4D LCD Panel

Desktop PC Module LCD Panel

Product Description

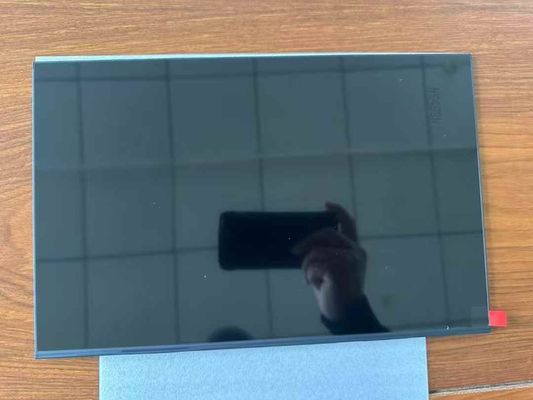

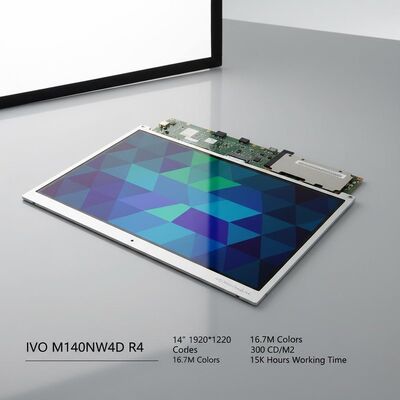

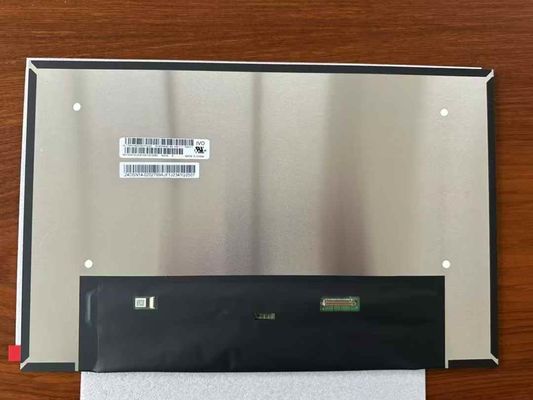

IVO M140NW4D R4 14" 1920*1200 LCD Panel

High-performance 14-inch desktop LCD panel with WUXGA resolution, 16.7 million colors, and 300 cd/m² brightness. Designed for laptop applications with 15,000 hours LED backlight lifespan.

Product Overview

The M140NW4D R4 is a 14.0" diagonal a-Si TFT-LCD display panel from InfoVision Optoelectronics featuring an integral WLED backlight system with LED driver. This panel operates within 0~50°C and offers excellent viewing angles with IPS technology.

Key Specifications

Brand	IVO
Model P/N	M140NW4D R4
Diagonal Size	14.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1200 (WUXGA), 161 PPI
Active Area	301.594(W)*188.496(H) mm
Luminance	300 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10) Left/Right/Up/Down
Color Depth	16.7M colors, 45% NTSC
Response Time	20 ms (Typical, Tr+Td)
Refresh Rate	60Hz standard, up to 240Hz with MEMC
Backlight	WLED, 15K hours, With LED Driver
Signal Type	eDP (2 Lanes)
Voltage Supply	3.3V (Typical)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Outline Dimensions	306.59(W)198.9(H)5.1(D) mm

Advanced Features

IPS Family Technology (AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich)
Multiple Refresh Rate Options: 60Hz, 120Hz (with MEMC), 240Hz (with MEMC)
Slim design with PCBA Bent (T≤3.0mm)
Normally Black, Transmissive work mode
RGB Vertical Stripe pixel format

Application

Primarily designed for laptop integration. This module does not include touch screen capability.

Note: Production status information is for reference only. For the latest production and specification details, please contact IVO or their authorized agents before making integration decisions.
