BOE 19inch PC LCD Module with 1280x1024 Pixels 250cd/m2 Brightness and 30 Pin Connector

Name: BOE 19inch PC LCD Module with 1280x1024 Pixels 250cd/m2 Brightness and 30 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: MV190E0M-N10
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	MV190E0M-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

XGA

Style:

Wide Screen High Resolution 1280*1024Pixels

Brightness:

250cd

Connector:

30PIN

Contrast Ratio:

1000:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

MV190E0M-N10 Desktop lcd panel

19inch Desktop lcd panel

30 Pin Desktop lcd panel

Product Description

BOE 19-inch Desktop LCD Panel MV190E0M-N10

1280*1024 Pixels, 250 cd/m², 30-Pin PC LCD Module

The BOE MV190E0M-N10 is a 19.0-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system. This industrial-grade LCD module is designed for desktop monitor applications with reliable performance across varying environmental conditions.

Key Features

19.0-inch SXGA display with 1280*1024 resolution
250 cd/m² brightness with 1000:1 contrast ratio
WLED backlight with 30,000-hour lifespan
LVDS signal interface with 30-pin connector
Wide viewing angles: 89/89/89/89 (CR≥10)
Anti-glare surface with hard coating (3H)
Supports multiple refresh rates including 75Hz and 120Hz

Technical Specifications

Panel Type	a-Si TFT-LCD, LCM
Active Area	374.784 * 299.827 mm
Outline Dimensions	396 * 324 * 10.4 mm
Pixel Density	86 PPI
Display Colors	16.7M (72% NTSC)
Response Time	8/8 ms (Typ.), 14 ms (G to G)
Display Mode	ADS, Normally Black, Transmissive
Input Voltage	5.0V (Typ.)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Weight	1.69 kg (Typ.)

Application

This LCD module is specifically designed for desktop monitor applications and is recommended for industrial and commercial display solutions.

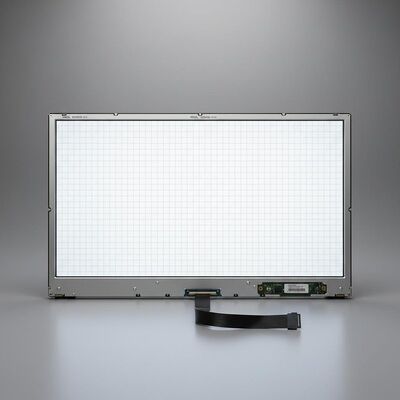

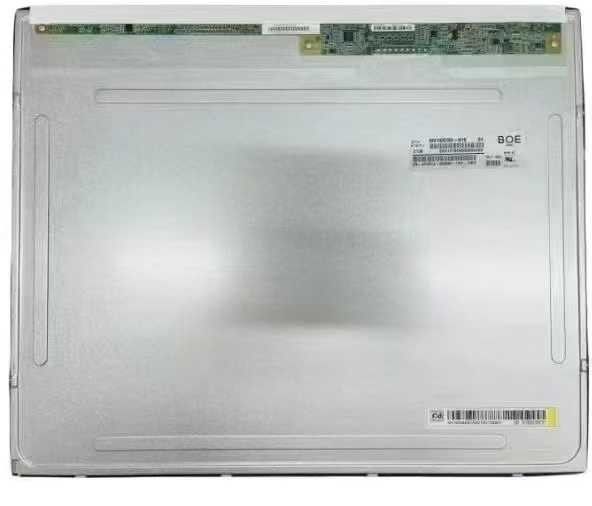

Product Image

Note: Production status information is for reference only. For the latest production details and specifications, please contact BOE or their authorized distributors.
