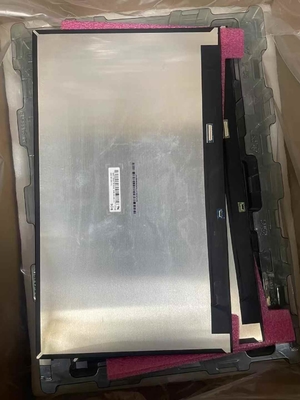

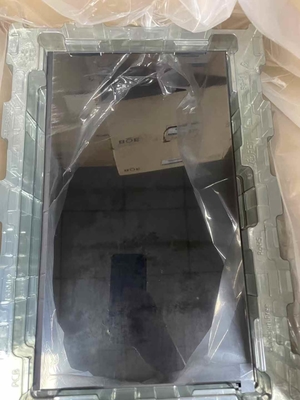

BOE Laptop lcd model TV156FHM-NM0lcd panel 16 Inch 1920*1080Pixels PC LCD Module 51PIN

BOE Technology Group Co., Ltd. (hereafter called BOE) TV156FHM-NM0 (Product Code: BOE0989) is a 15.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, Reverse I/F, AMD FreeSync , eDP1.2, Adjust backlight brightness with DC mode, Free sync. Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q2, 2023, Now this model is in production. We inputted this model's specification on Mar 22 2024 for the first time, and the latest update on Apr 28 2024. If you want to embed TV156FHM-NM0 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The TV156FHM-NM0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand BOE

Model P/N: TV156FHM-NM0
Diagonal Size: 15.6"

Panel Type: a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD 141PPI Pixel

Format RGB Vertical Stripe
Active Area 344.16(W)×193.59(H) mm

Bezel Opening-
Outline(mm) 351.74 × 205.69 × 5.33 (H×V×D)

Treatment Hard coating
Luminance: 450 cd/m² (Typ.)

Contrast Ratio1000 : 1 (Typ.) (TM)
Viewing Angle85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Response20 (Typ.)(Tr+Td) ms
Good View at Symmetry

Work ModeADS, Normally Black, Transmissive
Color Depth 16.2M 45% NTSC

Backlight 11S6P WLED , 20K hours , With LED Driver
Outline Shape Slim (PCBA Bent, T≤3.0mm)

Used for Laptop
Refresh Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouchscreenWithout
Signal Type eDP (4 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 51 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C

Operating Temp.: 0 ~ 50 °C
