BOE TV156FHM-NM0 15.6 Inch LCD Module with 1920x1080 Pixels and 1000:1 Contrast Ratio

Name: BOE TV156FHM-NM0 15.6 Inch LCD Module with 1920x1080 Pixels and 1000:1 Contrast Ratio
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TV156FHM-NM0
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	TV156FHM-NM0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080 Ixels

Style:

FHD 51P

Brightness:

450 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

20K Hours

Packaging Details:

Industrial packing

Highlight:

TV156FHM-NM0 Laptop LCD Model

16 Inch Laptop LCD Model

1920*1080 Pixels Laptop LCD Model

Product Description

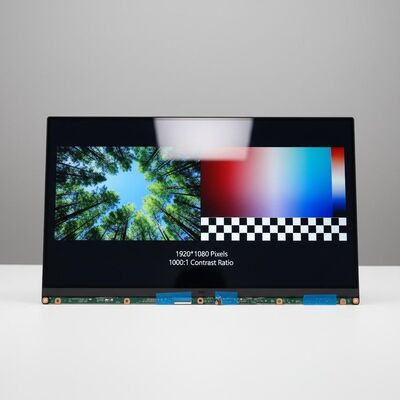

BOE TV156FHM-NM0 16 Inch Laptop LCD Display

BOE TV156FHM-NM0 is a high-performance 15.6-inch TFT-LCD display panel featuring Full HD 1920*1080 resolution, designed specifically for laptop applications. This PC LCD module delivers exceptional visual clarity with 141 PPI pixel density and advanced display technologies.

Key Features

15.6-inch diagonal a-Si TFT-LCD display
Full HD 1920*1080 resolution (141 PPI)
450 cd/m² typical luminance
1000:1 contrast ratio
85/85/85/85 viewing angle (CR≥10)
AMD FreeSync technology
eDP 1.2 interface with 51-pin connector
16.2M color depth with 45% NTSC
WLED backlight with 20,000-hour lifespan
Refresh rate options: 60Hz, 120Hz, and 240Hz with MEMC

Technical Specifications

Panel Type	a-Si TFT-LCD, LCM
Active Area	344.16 * 193.59 mm
Outline Dimensions	351.74 * 205.69 * 5.33 mm (HVD)
Response Time	20 ms (Typ.)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Voltage Supply	3.3V (Typ.)
Surface Treatment	Hard coating
Backlight System	11S6P WLED with LED Driver

Display Technology

This display utilizes ADS (Advanced Super Dimension Switch) technology with normally black mode and transmissive characteristics. The slim outline design with PCBA bent (T≤3.0mm) makes it ideal for modern laptop applications requiring high-performance displays in compact form factors.

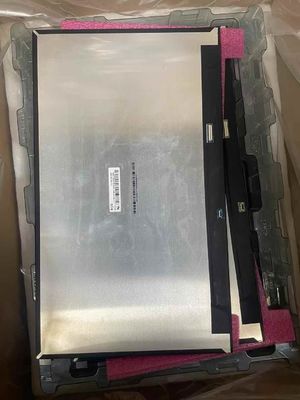

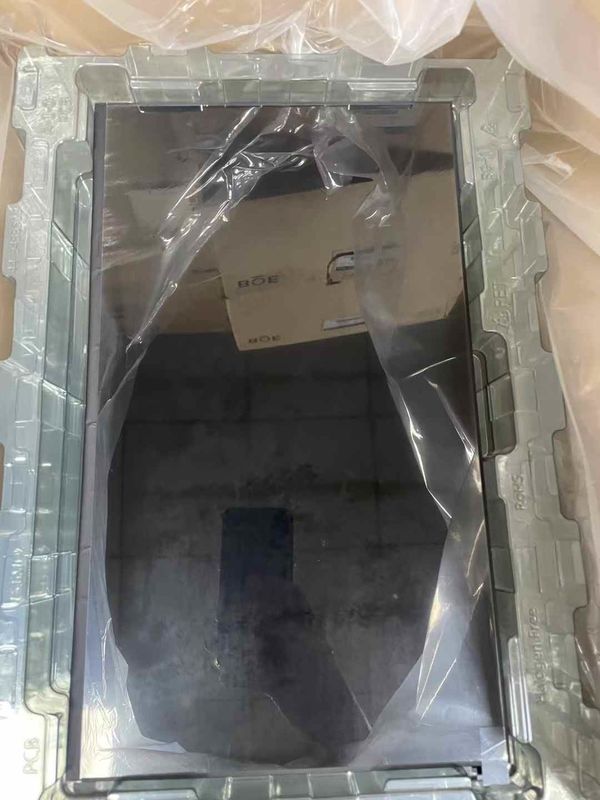

Product Images

Mass production began Q2 2023. For the latest production status and detailed specifications, please contact BOE or their authorized distributors. Information provided is for reference only and should not be used as the sole basis for decision-making.
