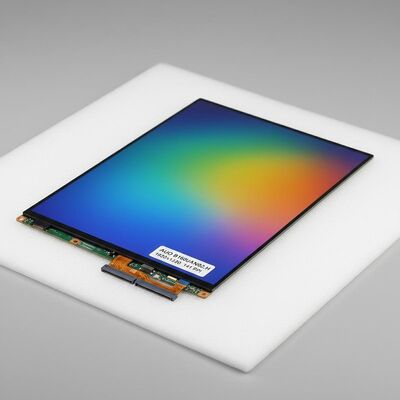

AUO 16inch PC LCD Module with 1920x1200 Pixels 300 cd/m² Brightness and 30PIN Connector

Name: AUO 16inch PC LCD Module with 1920x1200 Pixels 300 cd/m² Brightness and 30PIN Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: B160UAN02.H
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	B160UAN02.H
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1900*1200 Ixels

Style:

FHD 30P

Brightness:

300 CCD M2

Color:

16.7M

Contrast Ratio:

1200 :1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

30PIN PC LCD Module

16inch PC LCD Module

B160UAN02.H LCD Module

Product Description

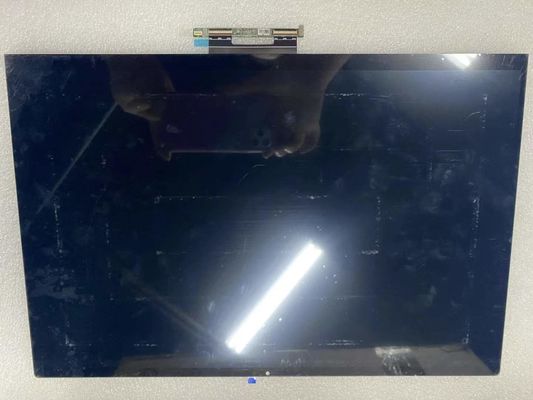

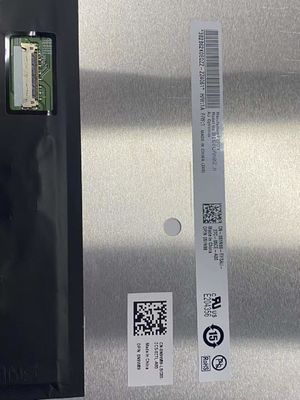

AUO 16-inch LCD Display Module B160UAN02.H

The B160UAN02.H (Product Code: AUOE69B) is a 16.0-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp., featuring an integrated WLED backlight system with LED driver. This PC LCD module operates without a touch screen and is designed for laptop applications.

Key Features

sRGB color gamut, WLED backlight with LED driver, matte finish, eDP1.4 interface, LBL technology, PSR1 power saving, and 141 PPI pixel density.

Technical Specifications

Brand	AUO
Model Number	B160UAN02.H
Diagonal Size	16.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920 * 1200 (WUXGA), 141 PPI
Active Area	344.68 * 215.42 mm
Outline Dimensions	349.68 * 225.32 * 5 mm (HVD)
Surface Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Response Time	25 ms (Typical)
Work Mode	AHVA, Normally Black, Transmissive
Color Depth	16.7M colors, 100% sRGB
Backlight	WLED, 15K hours, With LED Driver
Refresh Rate	60Hz

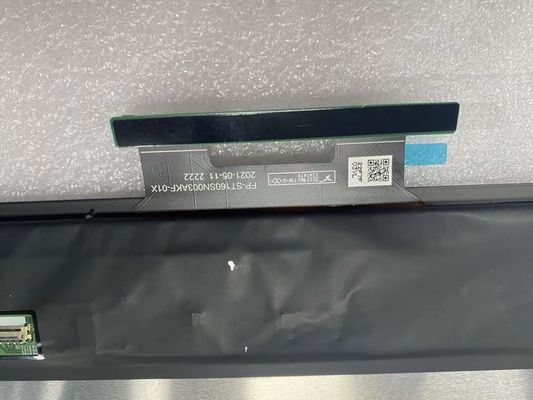

Signal Interface	eDP (2 Lanes), eDP1.4, 30-pin Connector
Operating Voltage	3.3V (Typical)

Environmental Specifications

Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Maximal Vibration Level	1.5G (14.7 m/s²)

Production Note: Mass production began in Q2 2022 and this model is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting AUO or their authorized agents directly.
