BOE NE140FHM-N63 14 Inch 1920*1080Pixels PC LCD Module 30PIN 15K Hours Working Life High Resolution

Brand Name:	BOE
Model Number:	NE140FHM-N63
MOQ:	10pcs
Price:	Negotiation

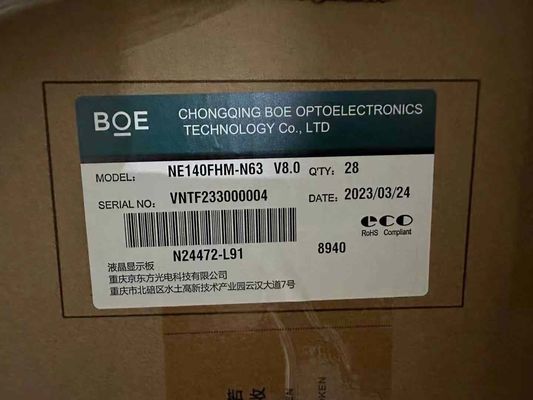

Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

FHD 30P

Brightness:

250 CCD M2

Color:

Contrast Ratio:

1500 :1

Working Life:

15K Hours

Supply Ability:

3000pcs per week

Highlight:

14 Inch PC LCD Module

30PIN PC LCD Module

NE140FHM-N63

Product Description

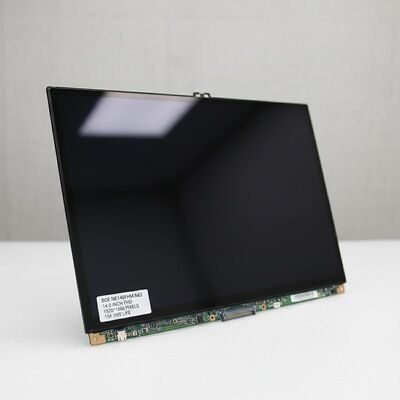

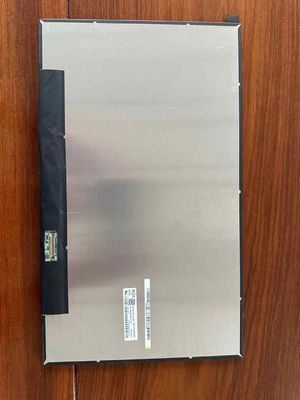

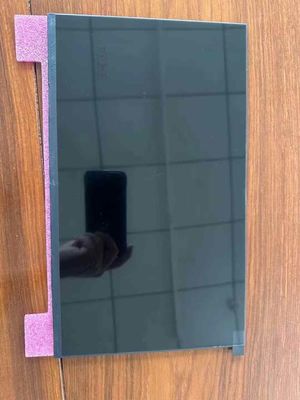

BOE NE140FHM-N63 14 Inch 1920 * 1080Pixels PC LCD Module 30PIN

NE140FHM-N63 is a 14.0" diagonal Oxide TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, Reverse I/F, 10 bit , eDP1.4. Based on its features, einklcd recommend that this model be applied to Laptop etc. Now this model is in production. We inputted this model's specification on Jun 18 2024 for the first time. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of NE140FHM-N63. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!

Brand:BOE

Model P/N:NE140FHM-N63
Diagonal Size:14.0"

Panel Type: Oxide TFT-LCD, LCM
Resolution:1920(RGB)×1080, FHD 157PPI Pixel

Format RGB Vertical Stripe
Active Area: 309.312(W)×173.988(H) mm

Bezel Opening-
Luminance-

Contrast Ratio1500:1 (Typ.) (TM)
View DirectionSymmetryResponse Time30 (Typ.)(Tr+Td)
Viewing Angle:85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode :ADS, Normally Black, Transmissive
Support Color:1.07B

Light Source: WLED , 15K hours , With LED Driver
Form StyleSlim (PCBA Bent, T≤3.0mm)

Designed For Laptop
Frame Rate: 60Hz

Touch Panel :Without

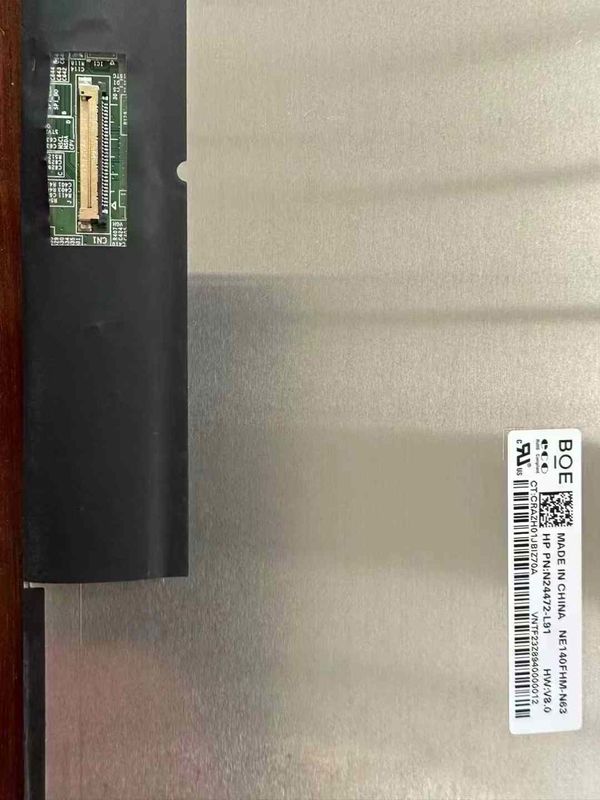

Interface Type: eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;

Storage Temperature: -20 ~ 60 °C

BOE NE140FHM-N63 14 Inch 1920*1080Pixels PC LCD Module 30PIN 15K Hours Working Life High Resolution 0
