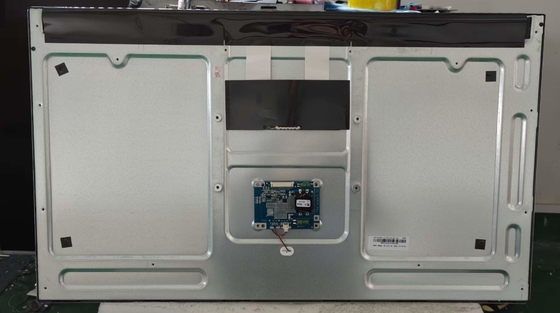

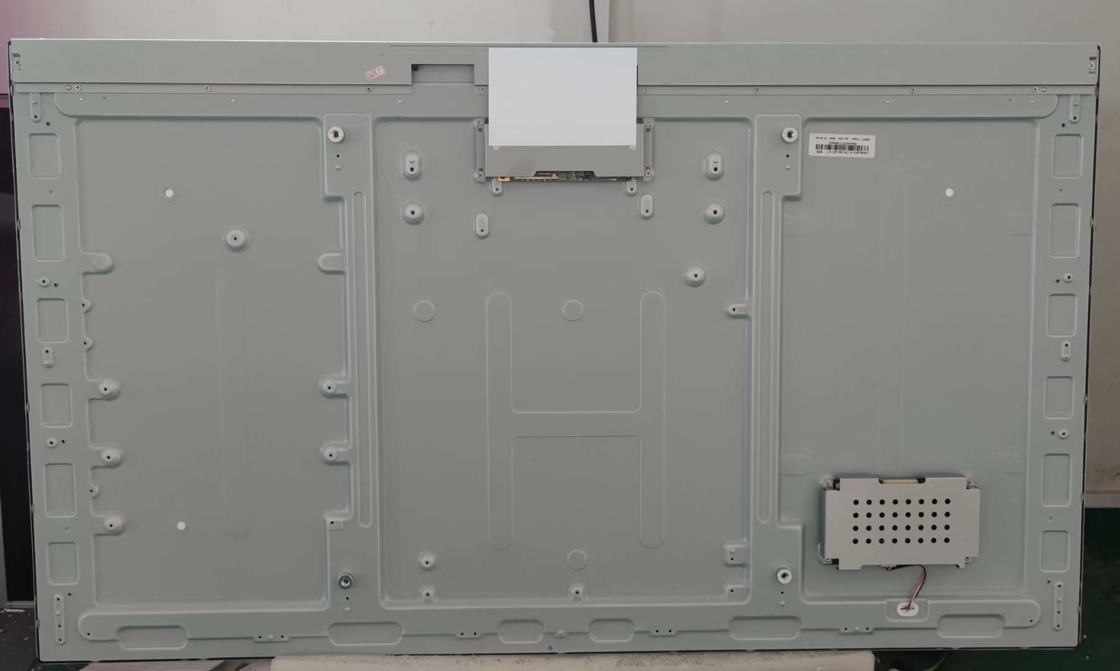

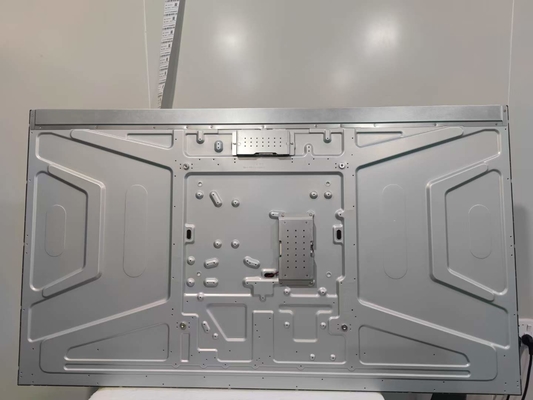

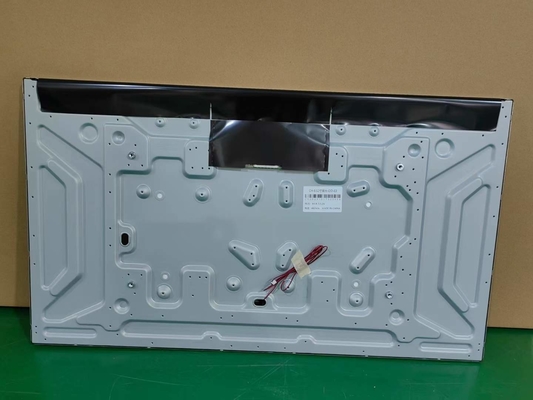

BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels 80PPI 1.07 Billion Colours 120P

BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P
BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P

Large Image :  BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels 80PPI 1.07 Billion Colours 120P

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: HV550QUB-F70
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels 80PPI 1.07 Billion Colours 120P

Description
Quality: Brand New Original Package: Original Industrial Packing
Brightnerss: 500CCD/M2 Connector: 120P
Color: 1.07Billion Contrast Ratio: 1200:1
Working Life: 30K Hours Touch Panel: Without
Resolution: 3840*2160pixels

BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels 80PPI 1.07 Billion Colours 120P



HV550QUB-F70 is a 55" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: 10 bit, Matte . Based on its features, Einklcd recommend that this model be applied to TV Sets etc.Built-in 6 source chips driver IC. According to the information stored in einklcd this model mass production on Q4, 2020, Now this model is in production. We inputted this model's specification on Sep 24 2020 for the first time, and the latest update on Jun 27 2024. If you want to embed the CELL in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of HV550QUB-F70. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



Brand:BOE
Model P/N: HV550QUB-F70
Diagonal Size: 55"
Panel Type: a-Si TFT-LCD, CELL , FOB
Resolution: 3840(RGB)×2160, UHD 80PPI
Pixel Format: RGB Vertical Stripe
Active Area1209.6(W)×680.4(H) mm
Bezel Opening-
Outline Size 1221.4(W)×694.8(H)×1.34(D) mm
Treatment Antiglare (Haze 1%), Hard coating (3H)
Luminance 0 cd/m²
Contrast Ratio 1200 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down Response 8 (Typ.)(G to G) ms
Good View at Symmetry Work Mode ADS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Glass Thickness 0.50+0.50 mm
It's Depth of CF Depth + Array Depth
CELL Depth = CF Depth + Array
Depth Transmissivity 5.41% (Typ.)(with Polarizer)
Color Depth :1.07B 73%
NTSC Backlight No B/L
Mass 2.60Kgs (Typ.)
Used for TV Sets
Refresh Rate :60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen Without
Driver IC list :Built-in COF 6 source chips
Signal Type: CEDS , 120 pins Connector
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C

BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P 0BOE 55Inch TV LCD Display Screen HV550QUB-F70 3840*2160pixels  80PPI 1.07 Billion Colours 120P 1
