| Brand Name: | Innolux |
| Model Number: | S500DJ2-KS5 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

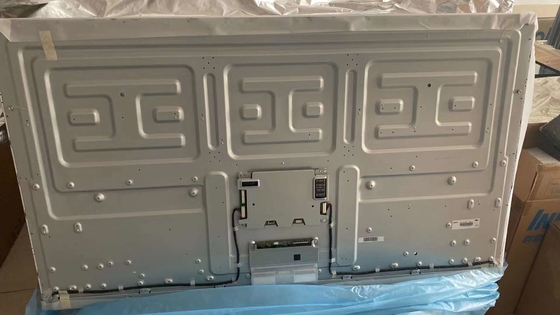

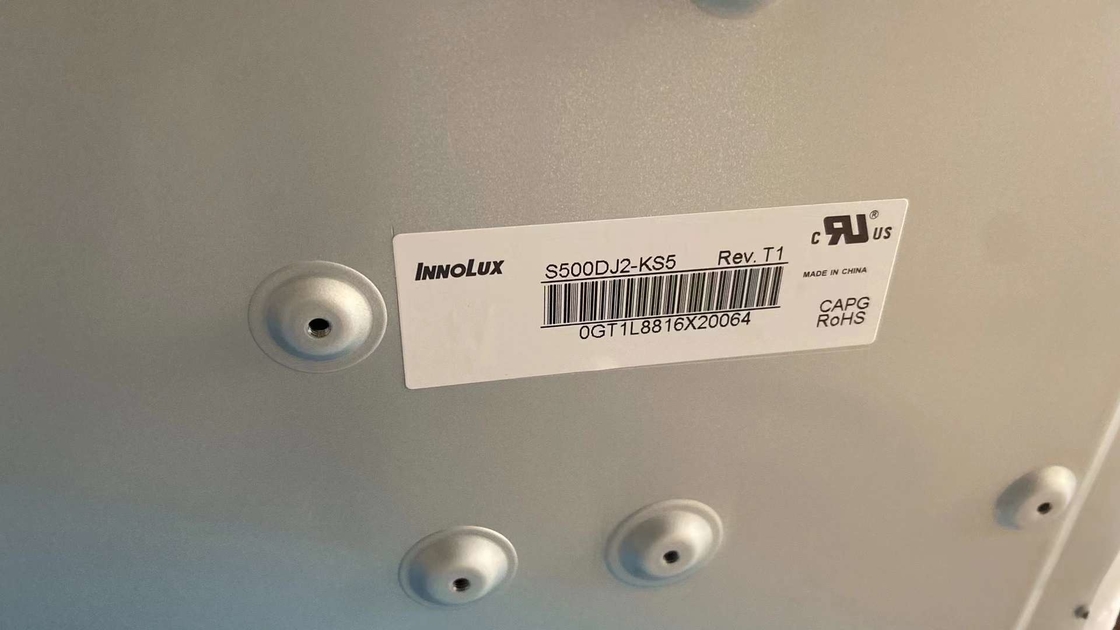

Innolux 50 Inch Large LCD Display Screen S500DJ2-KS5 3840*2160pixels 1.07 Billion Colours 51P
The S500DJ2-KS5 is a 50 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: DCI-P3, sRGB, Landscape / Portrait, WLED Backlight, With LED Driver, Reverse I/F, 10 bit, Matte . Based on its features, Einklcd recommend that this model be applied to Digital Signage etc. According to the information stored in Einklcd this model mass production on Q2, 2015, Now this model is in production. We inputted this model's specification on May 24 2016 for the first time, and the latest update on Sep 14 2023. If you want to embed S500DJ2-KS5 LCM in your future product, Einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail. The S500DJ2-KS5 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand
Innolux
Model
S500DJ2-KS5
Diagonal Size
50 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
3840(RGB)×2160 [UHD]
Configuration
RGB Vertical Stripe
Active Area
1095.84(H)×616.41(V) mm
Outline Dim.
1115.04(H)×638.41(V) ×29.9(D) mm
Bezel Area
1103.0(H)×622.41(V) mm
Treatment
Antiglare (Haze 1%)
Luminance
500 cd/m² (Typ.)
Contrast Ratio
4000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
9.5 (Typ.)(G to G)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
Super MVA, Normally Black, Transmissive
Support Color
1.07B
Light Source
WLED , 30K hours , With LED Driver
Weight
12.3Kgs (Typ.)
Designed For Digital Signage
Frame Rate
120Hz
Touch Panel
Without
Interface Type
51 pins V-by-One 8 lane , Connector
Power Supply
12.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
