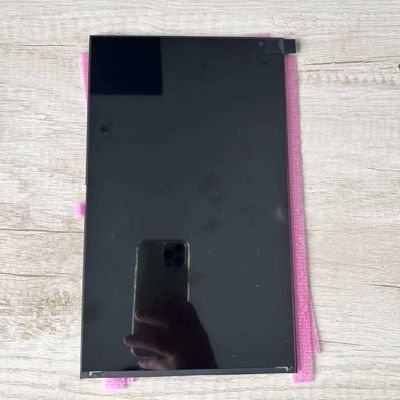

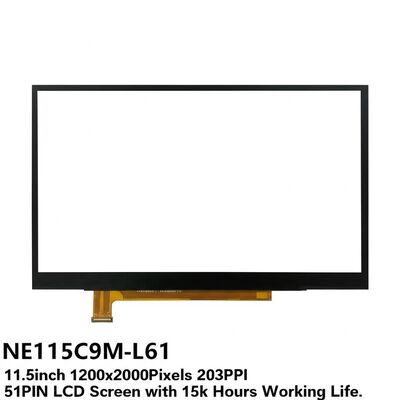

BOE NE115C9M-L61 11.5inch LCD Screen with 1200x2000Pixels Resolution and 15k Hours Working Life

Name: BOE NE115C9M-L61 11.5inch LCD Screen with 1200x2000Pixels Resolution and 15k Hours Working Life
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NE115C9M-L61
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NE115C9M-L61
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

400ccd/m2

Resolution:

1200*2000pixels

Contrast Ratio:

1400:1

Color:

16.7m

Working Life:

15k Hours

Connector:

51P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

NE115C9M-L61 LCD Screen

1200x2000Pixels LCD Screen

11.5inch LCD Screen

Product Description

NE115C9M-L61 11.5-inch LCD Display Panel

High-resolution 1200×2000 pixel display with 203 PPI density, designed for tablets and laptops with extended 15,000-hour working life.

Product Overview

BOE 11.5-inch Oxide TFT-LCD display panel with In-Cell touch technology, featuring high color gamut and multiple refresh rate options.

Technical Specifications

Brand & Model	BOE NE115C9M-L61
Diagonal Size	11.5 inches
Panel Type	Oxide TFT-LCD, LCM
Resolution	1200(RGB)×2000 pixels (203 PPI)
Active Area	149.616mm × 249.36mm
Outline Dimensions	154.38mm × 257.59mm × 3.7mm
Luminance	400 cd/m² (Typical)
Viewing Angle	89°/89°/89°/89° (CR≥10) Left/Right/Up/Down
Color Depth	16.7M colors, 98% DCI-P3
Weight	132g (Maximum)

Performance Features

Refresh Rates: 60Hz standard, 120Hz with embedded MEMC circuit, 240Hz with MEMC processing
Surface Treatment: Antiglare (Haze 50%) with hard coating
Contrast Ratio: 1400:1 (Typical)
Response Time: 25ms (Typical, Tr+Td)
Backlight: 8S5P WLED, 15,000 hours lifespan, no driver required

Interface & Connectivity

MIPI interface (4 data lanes) with 51-pin connector, operating voltage 1.85V (Typical)

Environmental Specifications

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 60°C

Application

Designed for tablets and laptops, featuring In-Cell touch technology with I²C interface. Compatible with devices and similar applications.

Production status: Mass production began Q2 2023. For the latest production status and detailed specifications, please contact BOE or their authorized distributors directly.
