BOE 10.5inch NV105WAM-N31 LCD Screen with 1920x1280 Pixels 219PPI and 50PIN for Laptop

BOE 10.5inch NV105WAM-N31 LCD Screen with 1920x1280 Pixels 219PPI and 50PIN for Laptop

BOE 10.5inch NV105WAM-N31 LCD Screen with 1920x1280 Pixels 219PPI and 50PIN for Laptop

Brand Name: BOE
Model Number: NV105WAM-N31
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass
Brightness:
420ccd/m2
Resolution:
1920*1280pixels
Contrast Ratio:
1500:1
Color:
16.7M
Working Life:
15k Hours
Connector:
50P
Touch Panel:
Without
Packaging Details:
Industrial packing
Highlight:

NV105WAM-N31 Laptop LCD Screen

,

219PPI Pad LCD Screen

,

10.5inch Pad LCD Screen

Product Description
BOE 10.5-inch NV105WAM-N31 LCD Display Panel
High-resolution 10.5-inch laptop and tablet LCD screen with 1920*1280 resolution, 219 PPI pixel density, and 50-pin eDP interface.
Technical Specifications
Brand BOE
Model Number NV105WAM-N31
Diagonal Size 10.5 inches
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)*1280 (219 PPI)
Active Area 222.048*148.032 mm
Brightness 420 cd/m² (Typical)
Contrast Ratio 1500:1 (Typical)
Viewing Technology ADS (IPS Family)
Color Depth 16.7M colors (100% Adobe RGB)
Refresh Rate 60Hz standard, up to 120Hz/240Hz with MEMC
Interface eDP 1.4a, 50-pin connector
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Key Features
  • High pixel density of 219 PPI for sharp image quality
  • WLED backlight system with 15,000 hours lifespan
  • ADS technology for wide viewing angles
  • 100% Adobe RGB color gamut coverage
  • Embedded MEMC circuit for enhanced refresh rates
  • Slim profile design for laptops and tablets
  • eDP 1.4a interface with 50-pin connector

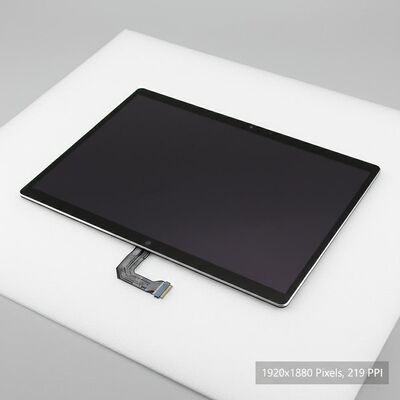

Product Image
BOE 10.5inch NV105WAM-N31 LCD Screen with 1920x1280 Pixels 219PPI and 50PIN for Laptop 0
Application & Recommendations
This display panel is specifically designed for integration into laptops, pads, and tablets. The model entered mass production in Q1 2020 and remains in active production.
For the most current production status and detailed specifications, we recommend contacting BOE or their authorized distributors directly.
