Innolux 9inch 800x480 Pixels 50PIN LCD Display Panel Gaming LCD Screen AT090TN12

Innolux 9inch 800x480 Pixels 50PIN LCD Display Panel Gaming LCD Screen AT090TN12

Innolux 9inch 800x480 Pixels 50PIN LCD Display Panel Gaming LCD Screen AT090TN12

Brand Name: Innolux
Model Number: AT090TN12
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass
Brightness:
300ccd/m2
Resolution:
800*480pixels
Contrast Ratio:
500:1
Color:
16.7M
Working Life:
20k Hours
Connector:
50P
Touch Panel:
Without
Packaging Details:
Industrial packing
Highlight:

9inch Digital Photo Frame Display

,

AT090TN12 Gaming LCD Screen

,

800x480Pixels Gaming LCD Screen

Product Description
Innolux 9-inch Digital Photo Frame Display AT090TN12
The Innolux AT090TN12 V.3 is a 9.0-inch diagonal TFT-LCD display panel featuring 800*480 WVGA resolution at 104 PPI. This industrial-grade LCD screen is designed for applications including digital photo frames and portable DVD players, offering reliable performance with wide operating temperature ranges.
Key Features
  • 9.0-inch diagonal TFT-LCD display with 800*480 resolution
  • 104 PPI pixel density for clear image quality
  • WLED backlight system with 20,000-hour lifespan
  • Wide operating temperature range: -20°C to 70°C
  • TTL signal interface with 50-pin FPC connector
  • Matte surface with antiglare treatment
  • 6/8-bit color depth supporting 262K/16.2M colors
Technical Specifications
Brand Chimei Innolux
Model Number AT090TN12 V.3
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)*480 (WVGA)
Active Area 198.0 * 111.696 mm
Brightness 300 cd/m² (Typical)
Contrast Ratio 500:1 (Typical)
Viewing Angle 70/70/50/70 (CR≥10)
Response Time 10/15 ms (Tr/Td)
Input Voltage 3.3/10.8/17.0/-5.0V
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Panel Weight 253g (Typical)

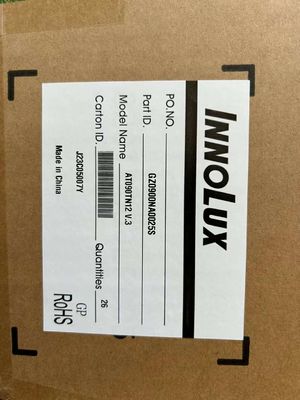

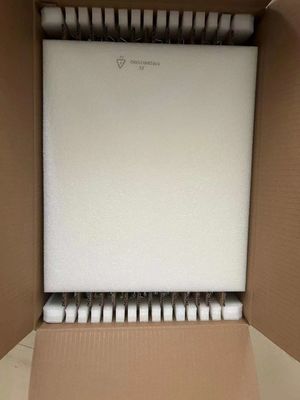

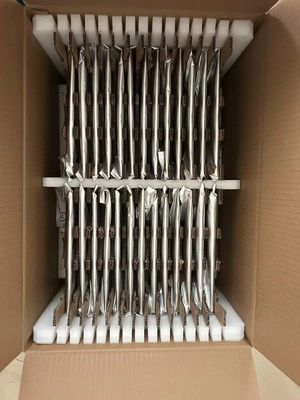

Product Image
Innolux 9inch 800x480 Pixels 50PIN LCD Display Panel Gaming LCD Screen AT090TN12 0
Note: This model entered mass production in Q2 2009 and is currently in production. For the latest specifications and production status, we recommend contacting Chimei Innolux or their authorized agents directly.
